6-Stall Shed Row Mare Motel, 12x24 Stalls, 4-Rail
No reviews yet.Write a review
$19,555.52
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

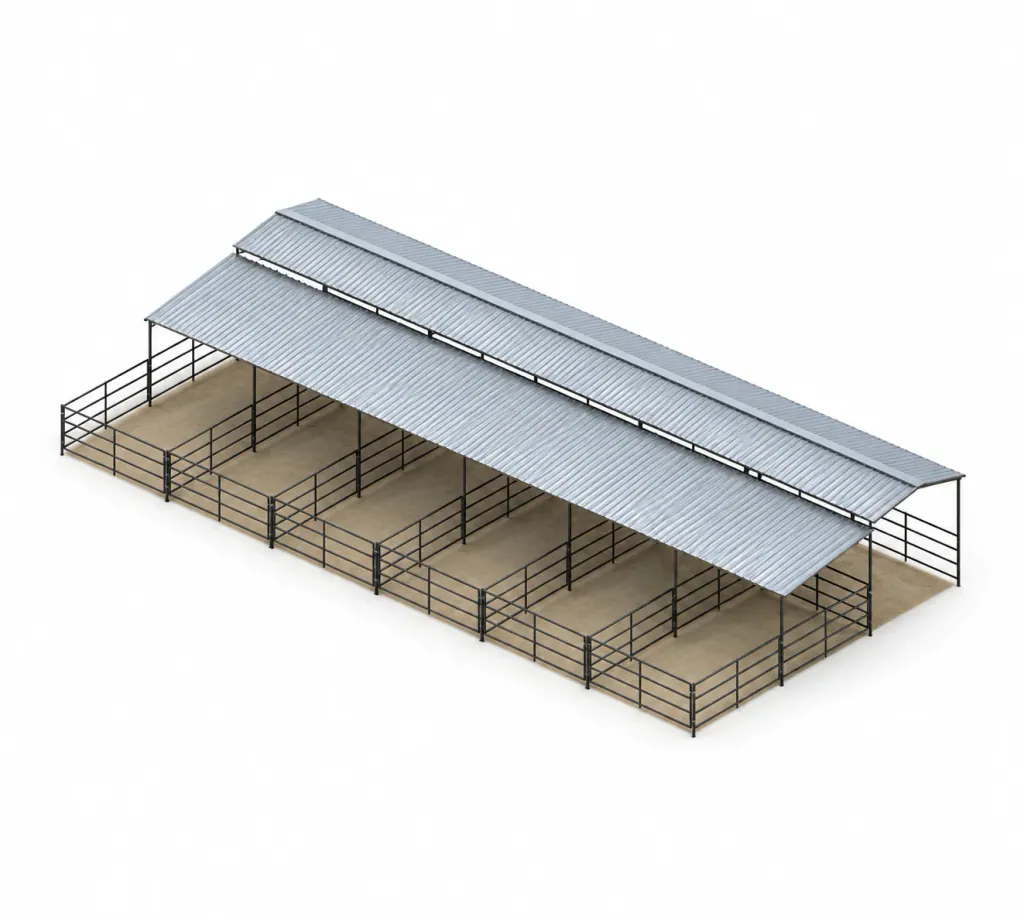

This 6-stall shed row mare motel sets six 12x24 ft stalls in one line along a covered aisle, each with a roofed front and an open run behind. It suits a trainer or a small boarding operation that wants a 6 stall horse barn on ground with length to spare.
Our shop welds the 4-rail panels, stall gates and roof frames. The kit includes the roof sheets, purlins, trusses and ridge caps, with the ground posts and panel clamps.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
A row about 72 ft long and 36 ft deep
The stalls and aisle take about 72 x 36 ft, a shape that fits along a fence line, a drive or the side of an arena. These horse stalls with shade give each horse 144 sq ft under the roof, in the 100 to 150 sq ft range Virginia Tech Extension uses for a horse under a run-in shed. You check all six on one straight walk.
A straight, level strip and post concrete
Level the strip end to end and let it drain away from the aisle. Set the kit's ground posts in concrete you supply, keeping it clear of the panel legs; nothing is welded on site. Feeders, water and bedding are yours to add.
Unloading by one end of the row
Stack the load on a firm, level patch by one end of the row, after asking us how long the longest pieces are. Make sure the truck and trailer can get in, turn and get back out, and have a tractor with forks, a skid steer or some helpers to lift the load off. Walk the load with the driver and note any damage on the delivery receipt.
The kit
- Stalls
- 6
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Single shed row
- Roof coverage
- Standard cover; open rear runs
- Panel height
- 5 ft
- Rails
- 4 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- Longest piece
- 12 ft
- SKU
- BT-000681
Parts
12 ft x 5 ft 4-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 4
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 14-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 4-Rail
- Length
- 12 ft
- Rails
- 4 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 1312 ft 4-rail panels
- 712 ft 4-rail sloped shade assemblies
- 612 ft 4-rail gate combos
Roof
- 4212 ft nominal Z-purlins
- 2712 ft stall roof sheets
- 546.5 ft raised breezeway roof sheets
- 712 ft center breezeway trusses
- 6Flat outer breezeway support assemblies
- 810 ft ridge caps
Hardware
- 107Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
How does it compare with the 6-stall classic?
The classic sets two rows of three stalls across the breezeway, so it is shorter and wider. With 4 rails and standard cover it is $14,334.52; this six-stall shed row is $19,555.52.
Can I start with six and add stalls later?
Buy the stall count you expect to need, and ask us first if you may want to add more. The same shed row is listed with 8 stalls at $25,755.41 and 10 at $31,958.56.
Can the breezeway roof slope instead?
Yes. A raised center roof is standard. Choose Sloped under Breezeway roof and the aisle roof runs down toward the outside, with the ridge cap directly over the stall doorways.
Do I need a permit?
That's up to your county. Our mare motels aren't engineered structures and aren't built to a building code, so check local rules before you order.
Can I cancel or return it?
No. All sales are final, and orders can't be cancelled once placed. Measure the length of your site first.
