10-Stall Shed Row Mare Motel, 12x24 Stalls, 4-Rail
No reviews yet.Write a review
$31,958.56
Affirm payment options depend on the final order amount. View financing details
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

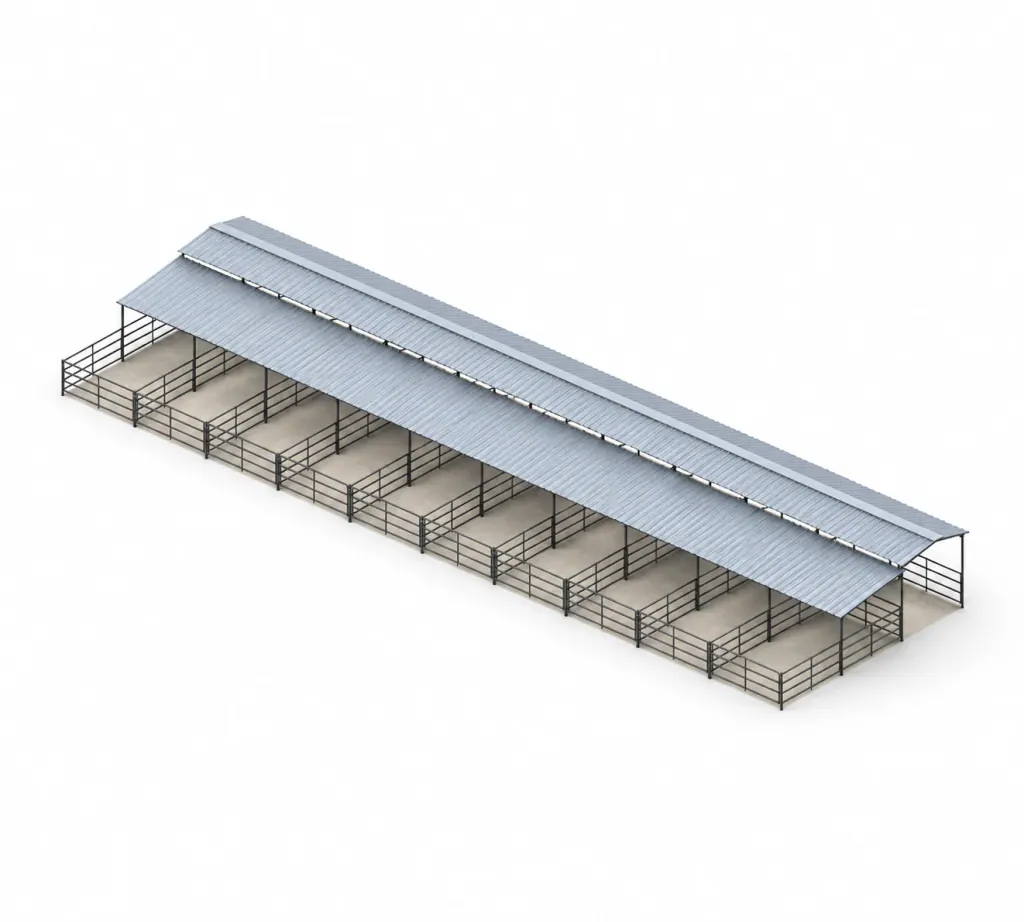

This 10-stall shed row mare motel houses ten horses in 12x24 ft stalls along one covered aisle, all on one side of it. It suits a boarding barn or training yard that needs ten horse stalls with outdoor runs on a long, narrow site.
We weld every panel, stall gate and roof frame at our shop. The kit includes the roof sheets, purlins and ridge caps for the full row, the ground posts and the clamps.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
About 120 x 36 ft, fed in one pass
These shed row stalls take about 120 x 36 ft, so look at a fence line, a property edge or a long drive. Roll a feed cart from one end of the aisle to the other and feed ten horses in order, with the roof over the aisle and the front 12 ft of each stall.
Plan water and hay before the posts go in
Before you set a post, plan water, hay storage and the manure pile along a row this long, and grade it level so rain drains off the aisle. The kit's ground posts go in concrete you supply, never the panel legs. Nothing is welded on site, and installation is quoted separately.
A turnaround and a spot midway along the row
Ten stalls make a large order, so have a tractor with forks or a skid steer ready. Ask us how long the longest pieces run, then pick a firm unloading spot near the middle of the row and clear a route for the truck and trailer to turn around and leave. Inspect the load and photograph any damage at the truck.
The kit
- Stalls
- 10
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Single shed row
- Roof coverage
- Standard cover; open rear runs
- Panel height
- 5 ft
- Rails
- 4 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- Longest piece
- 12 ft
- SKU
- BT-000697
Parts
12 ft x 5 ft 4-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 4
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 14-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 4-Rail
- Length
- 12 ft
- Rails
- 4 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 2112 ft 4-rail panels
- 1112 ft 4-rail sloped shade assemblies
- 1012 ft 4-rail gate combos
Roof
- 7012 ft nominal Z-purlins
- 4512 ft stall roof sheets
- 906.5 ft raised breezeway roof sheets
- 1112 ft center breezeway trusses
- 10Flat outer breezeway support assemblies
- 1210 ft ridge caps
Hardware
- 178Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
Is there a 12-stall shed row?
Yes. Pick 12 under Number of stalls, and the parts list and total update for a 12-stall shed row. Order the count you'll need now, and ask us if you may want more later.
How does it compare with the 10-stall classic?
The classic splits the ten stalls into two facing rows of five, so the building is shorter and wider. With 4 rails and standard cover it is $22,944.29; this shed row is $31,958.56.
Can I get 5 rails for foals?
Yes. Choose 5 rail under Panel style. Five rails leave 10-1/4 in between them where these leave 14-1/4 in, and we suggest them for mares with foals, ponies and minis.
Are mare motels engineered?
No. Our mare motels aren't engineered structures and aren't built to a building code. Ask your county what it requires before you order.
Can I cancel after ordering?
No. All sales are final and orders can't be cancelled. For a row this long, measure the site twice before you buy.
