8-Stall Shed Row Mare Motel, 12x24 Stalls, 4-Rail
No reviews yet.Write a review
$25,755.41
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

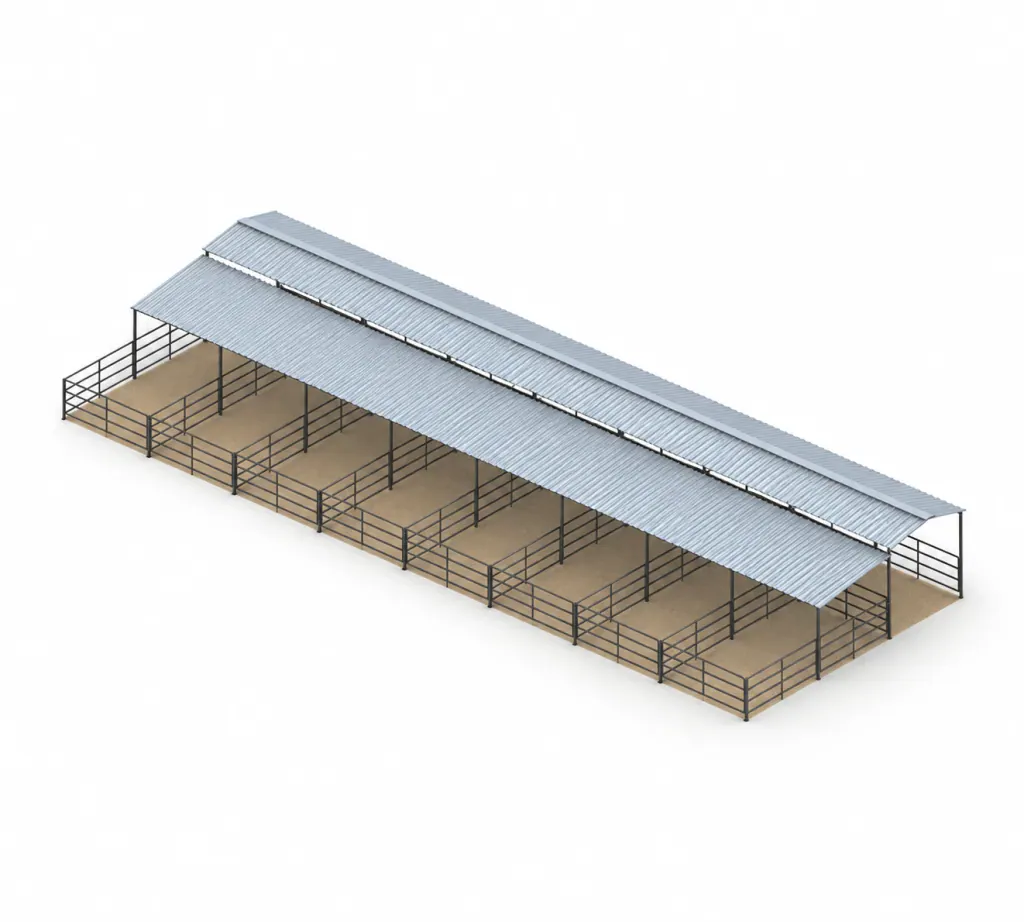

This 8-stall shed row mare motel lines up eight 12x24 ft stalls along a single covered aisle, each with a shaded front and an open run. It's for owners who want eight outdoor horse stalls on a long, level strip of ground rather than a wide one.
We weld the 4-rail panels, gates and roof frames in our shop. The kit includes the trusses, purlins, roof sheets and ridge caps, plus the ground posts, panel clamps and roofing screws.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
About 96 ft of stalls along one aisle
The stalls and aisle take about 96 x 36 ft, a shed row horse barn that can run the length of an arena or a property line. Morning feed is one walk from one end to the other, and the wheelbarrow stays under cover the whole way.
Grade the whole row level
A row this long shows any slope, so grade the strip level from end to end and drain water away from the aisle. Set the kit's ground posts in concrete, which you supply, and keep the panel legs out of it. Nothing is welded on site, and we quote installation separately.
Unload near the middle of the row
Eight stalls' worth is a large order, so have a tractor with forks or a skid steer on hand, and ask us how long the longest pieces are. Unloading near the middle of the site saves carrying parts from end to end; leave the truck and trailer room to turn around. Note any damage on the receipt before the driver leaves.
The kit
- Stalls
- 8
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Single shed row
- Roof coverage
- Standard cover; open rear runs
- Panel height
- 5 ft
- Rails
- 4 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- Longest piece
- 12 ft
- SKU
- BT-000689
Parts
12 ft x 5 ft 4-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 4
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 14-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 4-Rail
- Length
- 12 ft
- Rails
- 4 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 1712 ft 4-rail panels
- 912 ft 4-rail sloped shade assemblies
- 812 ft 4-rail gate combos
Roof
- 5612 ft nominal Z-purlins
- 3612 ft stall roof sheets
- 726.5 ft raised breezeway roof sheets
- 912 ft center breezeway trusses
- 8Flat outer breezeway support assemblies
- 1010 ft ridge caps
Hardware
- 142Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
Shed row or classic for eight stalls?
Choose by the shape of your ground. The classic puts four stalls on each side of the breezeway and is $18,639.40 with 4 rails and standard cover. This shed row keeps all eight on one side for $25,755.41.
Can I roof the whole stall?
Yes. Pick Fully covered under Stall roof coverage and the roof runs the full 24 ft of every stall. The parts list and total update to match.
Is there a version with wood walls?
Yes. The 8-stall wood-insert shed row, $30,017.66, uses 5-rail panels with wood-insert frames for boards you supply. The wood isn't included.
Do I need a permit?
Your county decides. Our mare motels are not engineered structures and are not built to a building code, so ask what's required before you order.
Can I cancel or return it?
No. All sales are final, and an order can't be cancelled once it's placed. Measure the length of your site before you buy.
