Short answer
Start with the 4-stall kit: four 12x24 stalls on a 12 ft breezeway, about 60 by 24 ft overall, from $10,153.13. Standard cover roofs the breezeway and the front of each stall; fully covered roofs the whole stall too.
| Stalls | Roof covers | Footprint | From |
|---|---|---|---|
| 4, standard cover | Breezeway and stall fronts | About 60 × 24 ft | $10,153.13 |
| 4, fully covered | Breezeway and whole stalls | About 60 × 24 ft | $13,638.69 |
| 8, standard cover | Breezeway and stall fronts | About 60 × 48 ft | $18,639.40 |
| 8, fully covered | Breezeway and whole stalls | About 60 × 48 ft | $25,352.99 |

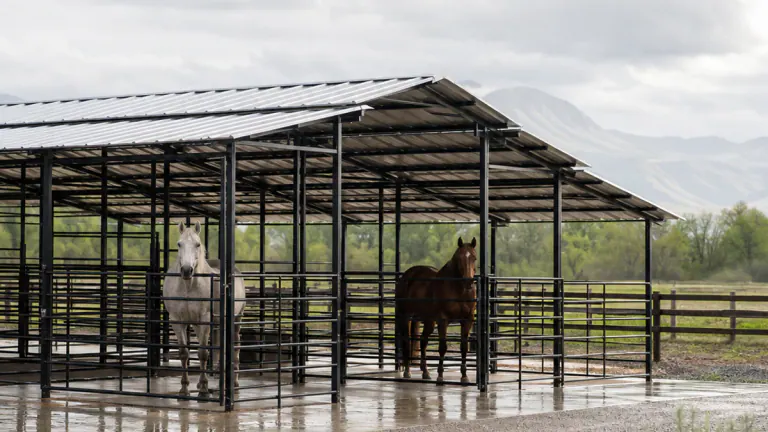

A mare motel is a group of horse stalls under a shared roofline, with a breezeway for access between the stalls. Its open sides allow air to move through the structure.
Choose the stall count, dimensions, breezeway and roof coverage together. The dimensions of one stall do not describe the complete building footprint.
Plan the stall row and breezeway
Many Blacktail configurations use 12x24 stalls with a central breezeway. Compare the product’s stall count and breezeway width, then allow room for the complete row and access around it.
With 12x24 stalls and a 12 ft breezeway, a 4-stall kit covers about 60 by 24 ft overall and an 8-stall kit about 60 by 48 ft. The stall panels are 5 ft tall and the breezeway roof is 9 to 10 ft high. A standard 4-stall kit ships with 64 panel clamps; nothing is welded on site.
Mark gates, feeding access and cleaning routes on the layout. Confirm the overall building dimensions before preparing the site.
Standard or full roof coverage
Standard layouts cover the breezeway and part of the adjoining stalls. Fully covered versions extend the roof over the complete stall area.
Choose coverage for the site’s weather and the way the horses will use the stalls. Every kit includes ground posts with hardware: 12 on a standard 4-stall and 24 on a fully covered 4-stall. Set those posts in concrete, which is not included, and clamp the panels to them. Do not concrete the panel legs.
Mare motel kits are not engineered structures and are not built to a specific building code, so check local codes before ordering. Installation is not included.
- Installation and site preparation
Plan assembly, site access and contractor requirements.
Stall count and stall size
The catalog includes 4, 6, 8, 10 and 12-stall configurations, depending on the style. Each listing specifies its stall dimensions, panel style, roof coverage and breezeway width.
The wood-insert shed-row kit comes in 4, 6, 8 and 10-stall configurations. Compare the separate product listings; wood boards are not included.
Mare Motel, 4 12x24 Stalls 4-Rail$10,153.13
6-Stall 4-Rail Mare Motel, 12x24 Stalls$14,334.52
8-Stall 4-Rail Mare Motel, 12x24 Stalls$18,639.40
Mare Motel, 8 12x24 Stalls Fully Covered 4-Rail$25,352.99
10-Stall 4-Rail Mare Motel, 12x24 Stalls$22,944.29
Mare Motel, 10 12x24 Stalls 5-Rail$24,358.56
Mare Motel, 12 12x24 Stalls Fully Covered 4-Rail$37,141.39
4-Stall 4-Rail Mare Motel, 24x24 Stalls with 12x24 Covers$16,095.04
Shed rows and infill options
Shed-row, wood-insert, welded-wire and PBR-sided configurations are available. Shed-row kits put the stalls in a single line, which suits a site that is long rather than wide. Welded-wire motels come with 5 ft or 6 ft panels. Heritage Series kits have welded C-channel for wood boards and a dapple grey powder coat included, and come fully covered or with each stall roofed in front and open behind. Check the specific product for the extent of roof and side coverage.
Wood is excluded from wood-insert and Heritage kits. Confirm timber dimensions and quantities separately before planning that part of the order.
Shed Row Mare Motel, 4 12x24 Stalls 4-Rail$13,307.52
Shed Row Mare Motel, 4 12x24 Stalls 4-Rail Fully Covered$16,657.82
4-Stall Wood-Insert Shed Row Mare Motel, 12x24 Stalls$15,560.49
Mare Motel, 4 12x24 Stalls 5-Rail Wood Insert + PBR Siding$13,211.90
Mare Motel, 4 12x24 Stalls Fully Covered, Welded Wire Panels$16,368.43
