12-Stall Mare Motel with PBR Siding, Wood-Insert Panels
No reviews yet.Write a review
$34,255.00
Wood not included. You supply the boards.
Affirm payment options depend on the final order amount. View financing details
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

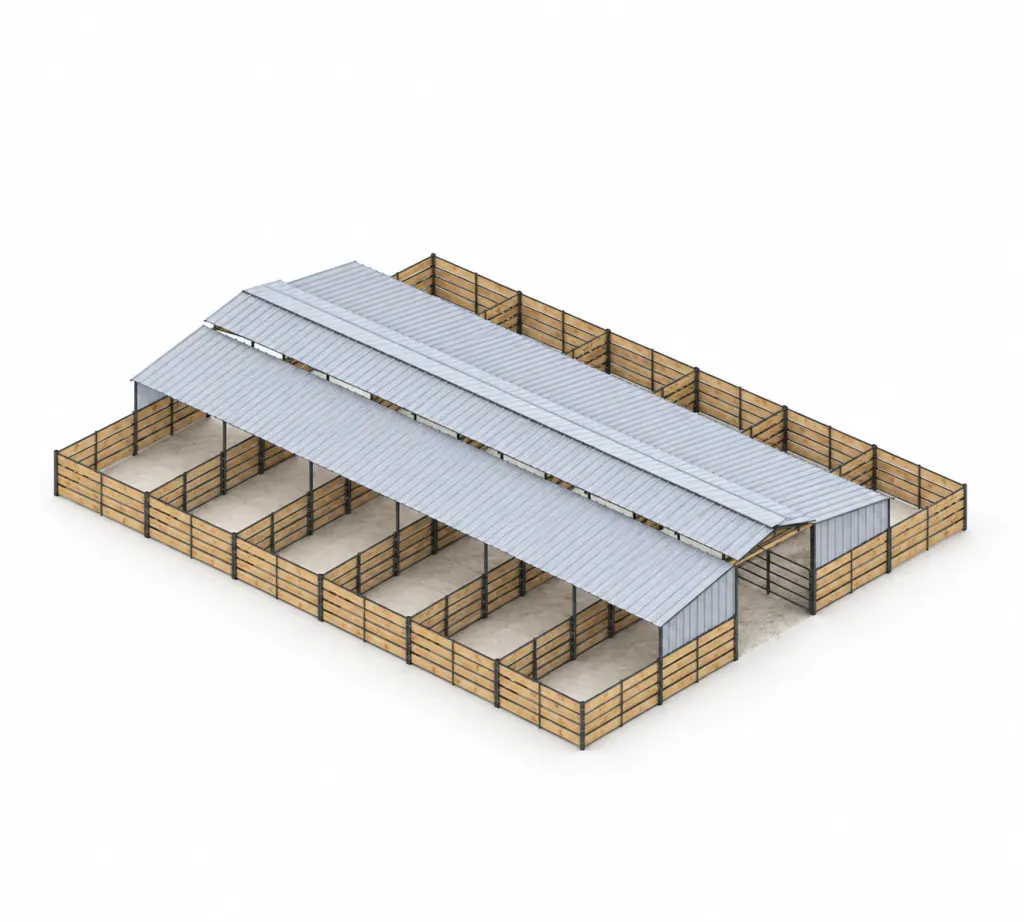

This 12-stall mare motel with PBR siding sets six 12x24 ft stalls on each side of a 12 ft breezeway, each roofed over its front half with an open run behind. For a dozen horses, it makes a wood and metal horse barn: your boards in the frames and PBR metal upper siding on the outer covered stall ends.
We weld the 5-rail panels, shade assemblies and gate combos at our shop. Along with them, the kit includes the roofing and its framing, the PBR siding stock, the ground posts, and the panel clamps and bolts.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
A dozen runs on about 72 x 60 ft
The stalls and aisle need a level, well-drained pad about 72 x 60 ft. Each of these partially covered horse stalls splits into a shaded 12 x 12 ft front and a 12 x 12 ft run, so a dozen horses each have their own outdoor space. With six stalls on each side of a breezeway about 72 ft long, one covered route serves all twelve for feeding and cleaning.
A lumber plan for twelve stalls
You supply and fit the boards for the kit's wood-insert frames. The kit's ground posts go in concrete you provide; leave the panel legs out of it. There's no welding on site, and we quote installation separately.
A dozen stalls to unload
A dozen stalls make a large load, so have a tractor with forks or a skid steer and people to help. Find out the longest length from us, then choose a firm, level unloading area that fits it and clear a route for the truck and trailer to enter, turn around and leave. Note any damage on the delivery receipt and photograph it before the driver leaves.
The kit
- Stalls
- 12
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Standard cover; open rear runs
- Panel height
- 5 ft
- Rails
- 5 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- PBR upper siding on the outer covered stall ends
- Breezeway
- 12 ft wide
- Longest piece
- 12 ft
- SKU
- BT-000633
Parts
12 ft x 5 ft 5-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 5
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 10-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 5-Rail
- Length
- 12 ft
- Rails
- 5 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 2612 ft 5-rail panels
- 1412 ft 5-rail sloped shade assemblies
- 1212 ft 5-rail gate combos
- 52Wood-insert frame upgrades
Roof
- 6012 ft Z-purlins
- 5412 ft PBR roof sheets
- 546.5 ft PBR roof sheets
- 712 ft center breezeway trusses
- 810 ft ridge caps
- 812 ft PBR stock for upper wall siding
Hardware
- 167Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
What is the difference from the 12-stall 5-rail kit?
The 12-stall 5-rail kit, $28,968.68, has the same layout and open runs with plain steel rails, no board frames and no siding. This kit is $34,255.00, before the boards.
Can I get the 12 stalls fully covered?
Yes. The fully covered 12-stall wood-insert kit roofs each stall end to end for $42,995.81. Its listed kit has no PBR siding.
Can I add stalls later?
Ask us before you plan on it. 12 is the top count under Number of stalls, so plan the whole barn now; Number of kits lets you order a second complete kit.
What size boards do I need?
Ask us before you buy lumber, and we'll confirm the board size and count for this kit. On twelve stalls the total adds up fast.
Do I need a permit?
Check with your county before you order. These mare motels are not engineered structures and aren't built to a building code, so your local rules decide.
Can I cancel or return it?
No. All sales are final, and orders can't be cancelled once placed, so settle the stall count and siding first.
