12-Stall 5-Rail Mare Motel, 12x24 Stalls
No reviews yet.Write a review
$28,968.68
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

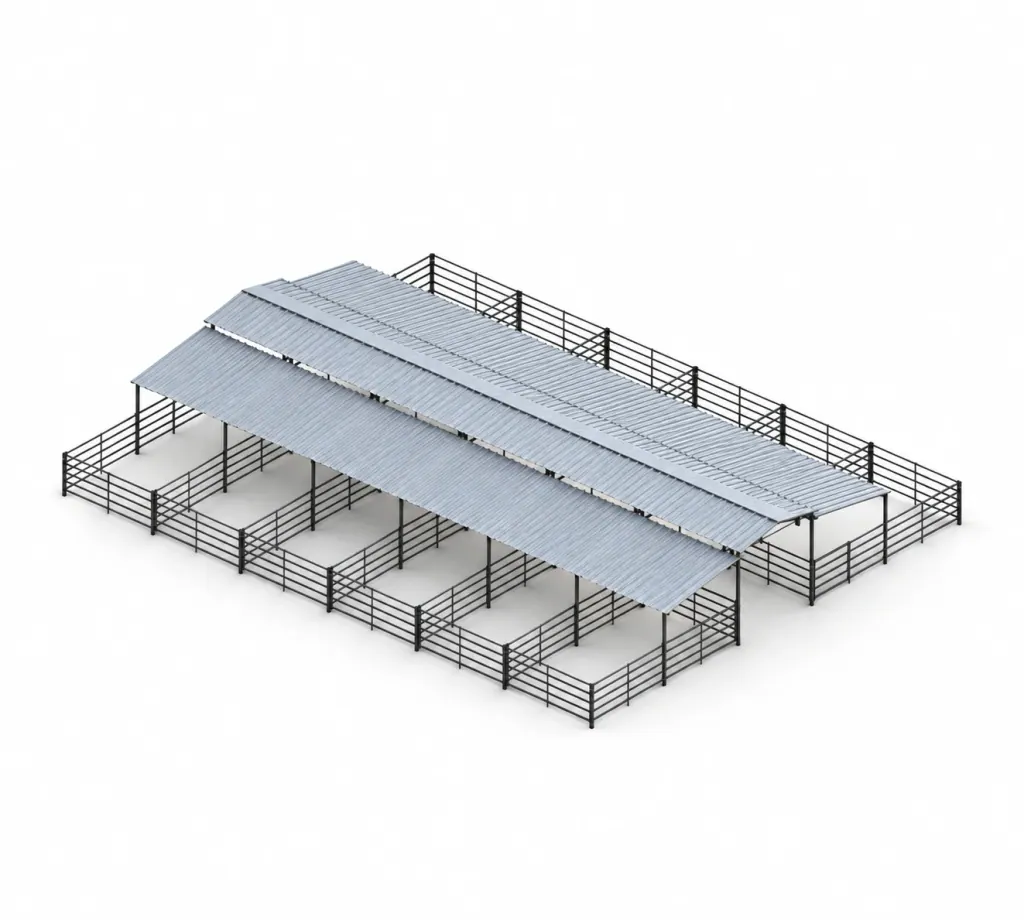

Our 12-stall 5-rail mare motel works as a broodmare barn for a breeding farm, with room for mares, foals and weanlings in one building. Twelve 12x24 ft stalls face each other in two rows of six, each roofed at the front with an open run behind.
We weld the 5-rail panels, gate combos and roof frames at our shop. The kit includes the trusses, roof sheets, purlins and ridge caps, plus the ground posts and clamps for every stall.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
A stall for each stage, about 72 x 60 ft
The stalls and breezeway take about 72 x 60 ft, with room to keep mares due to foal at one end, mares with foals at the other and weanlings across the aisle. Rails 10-1/4 in apart sit inside the 12 in or less Penn State Extension advises for horse fence. In these outdoor horse stalls, a mare and foal move between sun and shade as they like.
Drainage, post concrete and the extras
Pick level ground that drains, so the runs and aisle stay usable through foaling season. Set the kit's ground posts in concrete you supply, keeping it off the panel legs; nothing is welded on site. For a building this size, ask us to quote installation separately.
Forks, a firm spot and a twelve-stall load
Twelve stalls make a large order, so have a tractor with forks or a skid steer ready. Ask us how much length the longest pieces need, and choose a firm, level unloading spot to match where the truck and trailer can turn around safely. Before the driver leaves, check the load and photograph any damage.
The kit
- Stalls
- 12
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Standard cover; open rear runs
- Panel height
- 5 ft
- Rails
- 5 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- Longest piece
- 12 ft
- SKU
- BT-000545
Parts
12 ft x 5 ft 5-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 5
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 10-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 5-Rail
- Length
- 12 ft
- Rails
- 5 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 2612 ft 5-rail panels
- 1412 ft 5-rail sloped shade assemblies
- 1212 ft 5-rail gate combos
Roof
- 6012 ft Z-purlins
- 5412 ft PBR roof sheets
- 546.5 ft PBR roof sheets
- 712 ft center breezeway trusses
- 810 ft ridge caps
Hardware
- 167Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
What's the difference from the 12-stall 4-rail kit?
Only the rail count. The 4-rail kit, $27,297.27, leaves 14-1/4 in between rails and suits settled grown horses; this 5-rail kit is $28,968.68.
Can I add wood walls?
Yes, with the 12-stall wood-insert kit with PBR siding, $34,255.00. It has frames for boards you supply and PBR metal upper siding on the outer covered stall ends.
Can I roof the whole stall?
Yes. Pick Fully covered under Stall roof coverage and the roof runs the full depth of every stall, with no open runs. The parts list and total update to match.
Do I need a permit?
Ask your county before you buy. Our mare motels aren't engineered and aren't built to a building code, so local rules decide what a building with twelve stalls needs.
Can I cancel?
No. All sales are final, and orders can't be cancelled once placed.
