12-Stall Fully Covered Wood-Insert Mare Motel, 12x24 Stalls
No reviews yet.Write a review
$42,995.81
Wood not included. You supply the boards.
Affirm payment options depend on the final order amount. View financing details
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

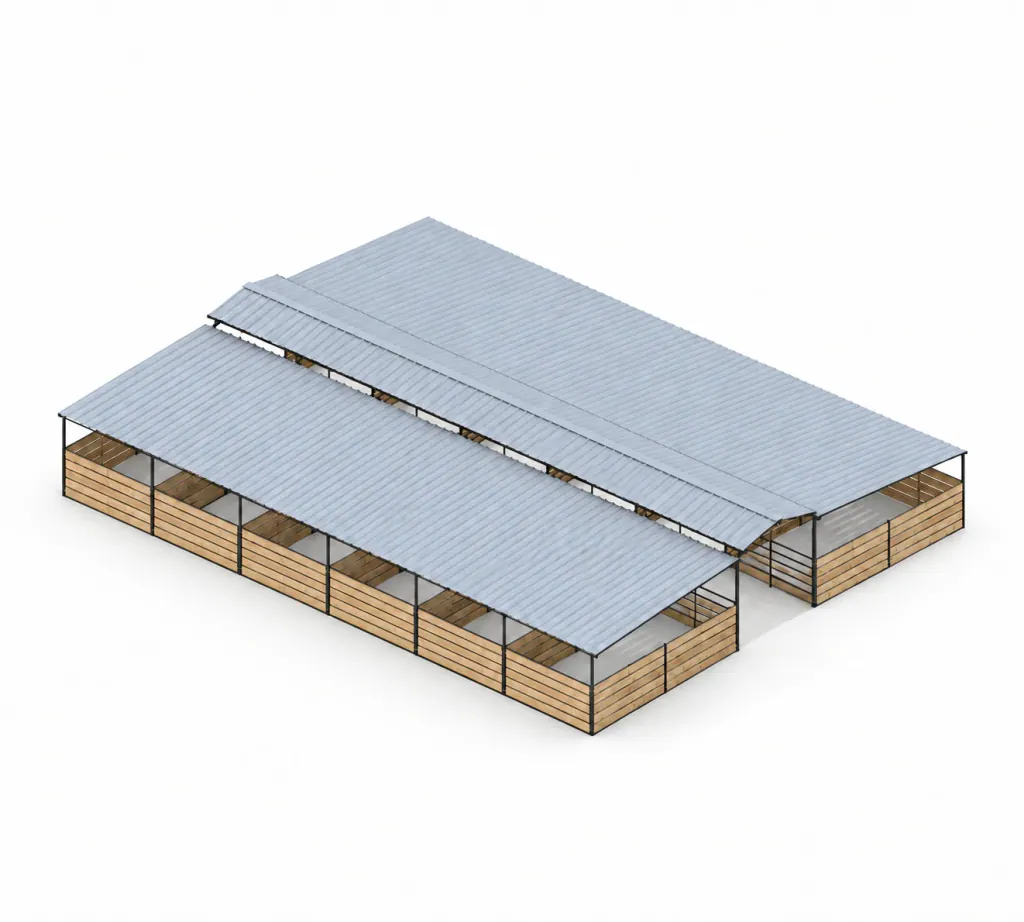

This 12-stall fully covered wood-insert mare motel stalls a dozen horses under one roof, six 12x24 ft stalls on each side of a 12 ft breezeway. It suits horses that spend most of the day in their stalls, with wood insert horse stalls for all twelve in one building.
We weld the 5-rail panels, shade assemblies and gate combos at our shop. The roof sheets and their framing, the ground posts and the panel clamps and bolts are all in the kit.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
About 72 x 60 ft, six stalls down each side
Plan on about 72 x 60 ft of level ground that drains, with the breezeway running about 72 ft through the middle. Each horse has 288 sq ft of roofed stall and no run, so turnout is up to your paddocks. Laid out like a center aisle horse barn, both rows of stalls face that aisle, and feed, water and bedding move along one covered route.
Boards to buy, posts to set in concrete
The kit includes the wood-insert frames, and the boards that fill them are yours to buy and fit. The kit's ground posts set in concrete you provide, kept off the panel legs. Nothing is welded on site, and installation is quoted on its own.
A twelve-stall delivery
Twelve fully covered stalls make a large delivery, so have a tractor with forks or a skid steer and people to help. Before the truck comes, get the length of the longest pieces from us and pick a firm, level unloading area with room to lay them down. Check the load and write any damage on the delivery receipt before the driver leaves.
The kit
- Stalls
- 12
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Fully covered stalls and breezeway
- Panel height
- 5 ft
- Rails
- 5 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- SKU
- BT-000601
Parts
12 ft x 5 ft 5-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 5
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 10-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 5-Rail
- Length
- 12 ft
- Rails
- 5 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
What’s included
Quantities for one kit.
Panels and gates
- 1212 ft 5-rail panels
- 1412 ft 5-rail sloped shade assemblies
- 1412 ft 5-rail high-rise shade assemblies
- 1212 ft 5-rail gate combos
- 52Wood-insert frame upgrades
Roof
- 9612 ft Z-purlins
- 54PBR roof sheets over the stalls
- 546.5 ft PBR roof sheets
- 712 ft center breezeway trusses
- 810 ft ridge caps
Hardware
- 171Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
How is it different from the 12-stall Heritage?
Heritage walls are welded C-channel frames that hold your boards, and the dapple grey powder coat is part of the kit. The 12-stall Heritage is $42,762.14; this kit is $42,995.81 in bare metal.
Is there a 12-stall version with open runs?
Yes. The 12-stall wood-insert kit with PBR siding roofs the breezeway and the front 12 ft of each stall and leaves the back open, for $34,255.00.
Can I get it with plain 4-rail panels?
Yes. The 12-stall fully covered 4-rail kit has open steel rails and no board frames, for $37,141.39. Four rails are enough for settled horses; five are what we suggest for young or untested horses, ponies and minis.
What finish does it come in?
It's listed in bare metal, which weathers to a rust patina. Dapple grey, black or a custom powder coat costs more; choose one under Finish and the total updates.
Do I need a permit?
Ask your county first. Our mare motels aren't engineered structures and aren't built to a building code, so local rules decide what a twelve-stall building needs.
Can I cancel or return it?
No. Every sale is final and an order can't be cancelled once placed, so settle the stall count, wall plan and site layout first.
