6-Stall Mare Motel with PBR Siding, Wood-Insert Panels
No reviews yet.Write a review
$18,368.03
Wood not included. You supply the boards.
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

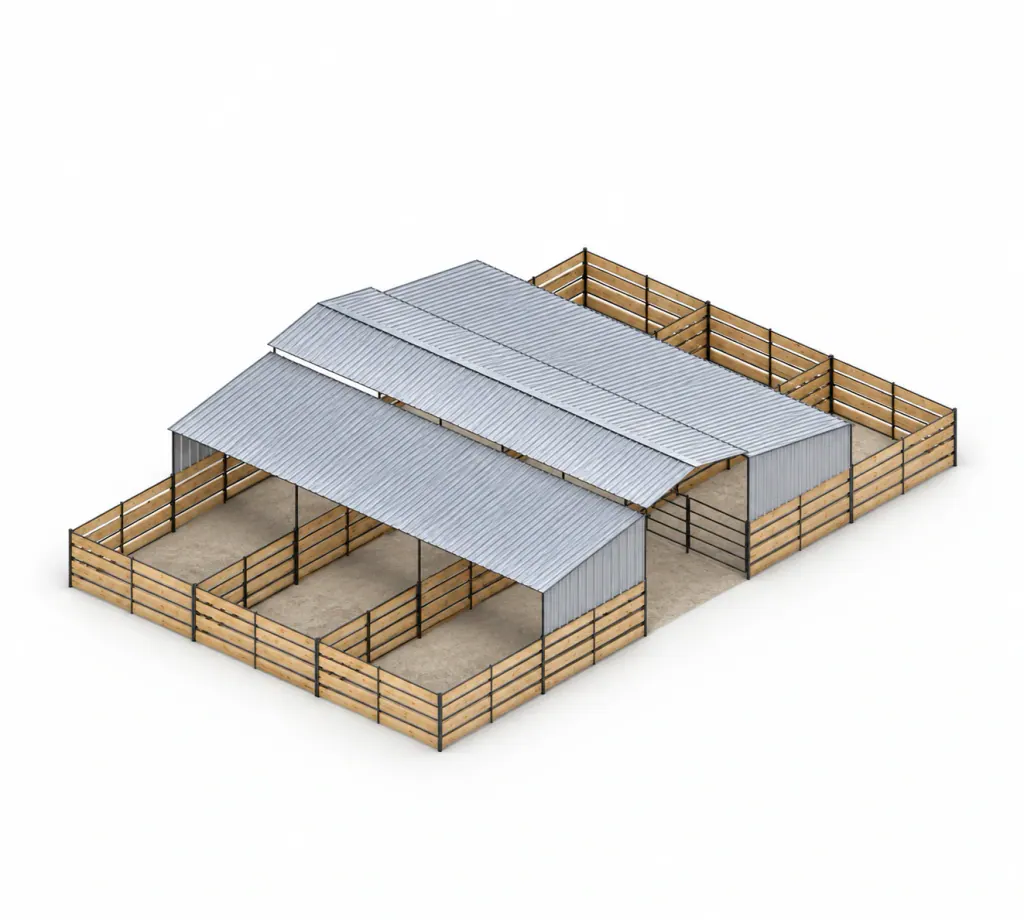

This 6-stall mare motel with PBR siding sets three 12x24 ft stalls on each side of a 12 ft breezeway and adds PBR metal upper siding to the outer covered stall ends. With your boards in its wood-insert frames, it gives a handful of horses a wood and metal horse barn with an open run behind every stall.
We weld the panels, shade assemblies and gate combos at our shop. In the kit you get the roofing, purlins and trusses, the sheets for the siding, the ground posts and the clamps and bolts.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
Six stalls and six runs on about 60 x 36 ft
The stalls and breezeway cover about 60 x 36 ft. In these partially covered horse stalls a horse has 144 sq ft of roof over it by the gate and as much open ground behind, so it can pick shade or sun. Both rows of three face the roofed aisle, where you feed and muck out.
Boards, concrete and a level site
Fill the kit's wood-insert frames with boards you buy and fit. Set the kit's ground posts in concrete you supply on level ground that drains, and keep the concrete off the panel legs. Nothing is welded on site; if you want it built for you, installation is quoted separately.
Space for the stalls and the siding stock
Ask us how long the longest pieces are, siding stock included, and choose a firm, level unloading area close to where the motel will stand. Keep a lane open for the truck and trailer to turn around. Inspect the shipment, photograph any damage at the truck and note it on the delivery receipt.
The kit
- Stalls
- 6
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Standard cover; open rear runs
- Panel height
- 5 ft
- Rails
- 5 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- PBR upper siding on the outer covered stall ends
- Breezeway
- 12 ft wide
- Longest piece
- 12 ft
- SKU
- BT-000621
Parts
12 ft x 5 ft 5-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 5
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 10-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 5-Rail
- Length
- 12 ft
- Rails
- 5 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 1412 ft 5-rail panels
- 812 ft 5-rail sloped shade assemblies
- 612 ft 5-rail gate combos
- 28Wood-insert frame upgrades
Roof
- 3012 ft Z-purlins
- 2712 ft PBR roof sheets
- 276.5 ft PBR roof sheets
- 412 ft center breezeway trusses
- 410 ft ridge caps
- 812 ft PBR stock for upper wall siding
Hardware
- 88Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
What does the siding add over the plain wood-insert 6-stall?
The 6-stall wood-insert kit without siding is $17,746.11, with the same panels, layout and roof. This one, at $18,368.03, adds the PBR siding and the sheets for it.
Can I skip the wood altogether?
Yes. The 6-stall 5-rail kit keeps the same two rows and open runs with plain steel rails, no board frames and no siding, for $15,234.51.
Can I roof the runs too?
Yes. Pick Fully covered under Stall roof coverage and the roof runs the full 24 ft of each stall. The total updates as you choose.
Do I need a permit?
Ask your county before you buy. Mare motels are not engineered structures and aren't built to a building code, so the local rules set what you need.
Can I cancel after I order?
No. All sales are final and orders can't be cancelled once placed, so settle the stall count, siding and finish first.
