12-Stall Mare Motel, 12x24 Stalls, 4-Rail
No reviews yet.Write a review
$27,297.27
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

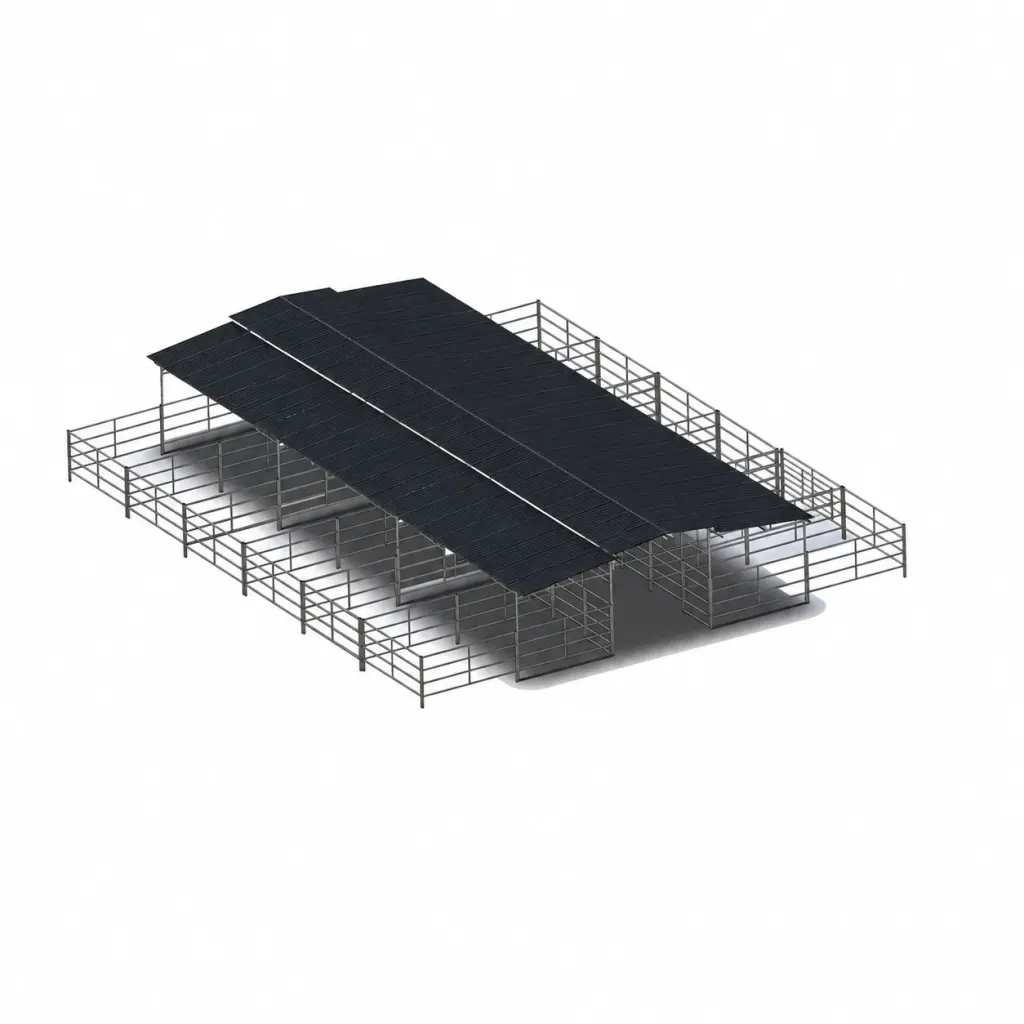

This 12-stall mare motel faces six 12x24 ft stalls across a covered breezeway from six more, each with a roofed front and an open run behind. It suits a boarding stable, or a ranch moving horses out of scattered pens into one 12 stall horse barn with open rail walls.
We weld the 4-rail panels, the gate combos and the roof frames at our shop. The kit includes everything for the roof, from the trusses to the ridge caps, with the ground posts and clamps for all twelve stalls.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
About 72 x 60 ft and one feed route
The stalls and breezeway take about 72 x 60 ft. Feeding is six stalls down one side of the aisle and six back up the other, all under cover. Sort horses by row or by end, mares here and geldings or boarders there, and each still eats alone in 288 sq ft.
A graded site with room for a feed truck
Level and drain a pad for the whole building, with room for a feed truck or tractor to reach both ends of the breezeway. The ground posts come in the kit; the concrete for them is yours, and it stays off the panel legs. Nothing is welded on site, and we quote installation separately.
A large order and a clear stacking area
Twelve stalls of panels and roofing need a tractor with forks or a skid steer to unload. Ask us what the longest piece measures, then keep a level stacking area that size clear near the pad and give the truck and trailer room to come in, turn around and leave. Check the load against What's included before the driver goes.
The kit
- Stalls
- 12
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Standard cover; open rear runs
- Panel height
- 5 ft
- Rails
- 4 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- Longest piece
- 12 ft
- SKU
- BT-000513
Parts
12 ft x 5 ft 4-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 4
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 14-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 4-Rail
- Length
- 12 ft
- Rails
- 4 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 2612 ft 4-rail panels
- 1412 ft 4-rail sloped shade assemblies
- 1212 ft 4-rail gate combos
Roof
- 6012 ft Z-purlins
- 5412 ft PBR roof sheets
- 546.5 ft PBR roof sheets
- 712 ft center breezeway trusses
- 810 ft ridge caps
Hardware
- 167Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
Can the 12 stalls go in one row instead?
Yes. Pick Shed row under Layout, and the page switches to a 12-stall shed row with its own parts list and total. All twelve stalls then sit on one side of the aisle, so the building runs about twice as long but narrower.
Is the 12-stall kit made with 5 rails?
Yes. The 12-stall 5-rail kit, with the same layout and roof, is $28,968.68, and this 4-rail kit is $27,297.27. Five rails, 10-1/4 in apart, suit foals, ponies and minis.
Can I get it fully covered?
Yes. The fully covered 12-stall 4-rail kit roofs every stall end to end for $37,141.39. Keep this one if you want horse stalls with outdoor runs.
Can I order more than 12 stalls?
Not in one kit: 12 is the top of the Number of stalls range. You can order a second complete kit with Number of kits, but talk to us before you plan to join two.
Do I need a permit?
Ask your county before you order. Mare motels are not engineered structures and aren't built to a building code, so local rules decide what a building this size needs.
Can I cancel?
No. All sales are final and an order can't be cancelled once it's placed. Measure the site and settle the finish before you check out.
