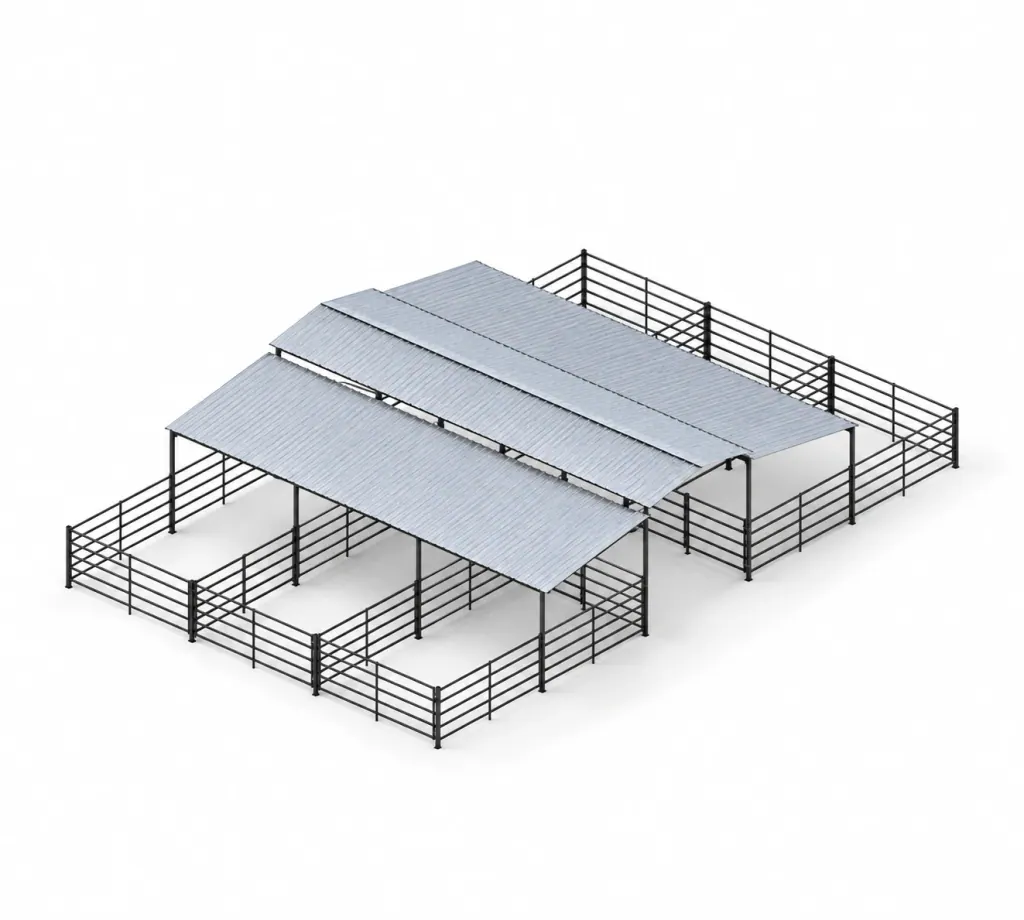

6-Stall 5-Rail Mare Motel, 12x24 Stalls
No reviews yet.Write a review
$15,234.51
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA
This 6-stall 5-rail mare motel gives a small breeding program six mare and foal stalls, three on each side of a covered breezeway. Each 12x24 ft stall has a shaded front, an open run and five closely spaced rails.
Our shop welds the 5-rail panels, gate combos and roof frames that go into our mare motel kits. The kit includes the roof sheets, purlins, trusses and ridge caps, plus the ground posts and clamps.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
Rails 10-1/4 in apart, on about 60 x 36 ft
The rails sit 10-1/4 in apart, inside the 12 in or less Penn State Extension advises for horse fence. The stalls and breezeway take about 60 x 36 ft. Both rows of three face the covered aisle, so a night check is one walk down the middle.
Dry runs and concrete for the posts
Grade the site so rain runs away from the open runs as well as the aisle. Concrete for the kit's ground posts is yours to bring; pour it around the posts and leave the panel legs bare. Nothing is welded on site, and we can quote installation separately.
A place to stack the load
Have a tractor with forks, a skid steer or extra hands ready, and a level spot beside the pad to stack the parts. Ask us how much room the longest pieces need so that spot is big enough. Inspect the shipment and note any damage on the delivery receipt before the driver leaves.
The kit
- Stalls
- 6
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Standard cover; open rear runs
- Panel height
- 5 ft
- Rails
- 5 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- Longest piece
- 12 ft
- SKU
- BT-000537
Parts
12 ft x 5 ft 5-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 5
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 10-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 5-Rail
- Length
- 12 ft
- Rails
- 5 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 1412 ft 5-rail panels
- 812 ft 5-rail sloped shade assemblies
- 612 ft 5-rail gate combos
Roof
- 3012 ft Z-purlins
- 2712 ft PBR roof sheets
- 276.5 ft PBR roof sheets
- 412 ft center breezeway trusses
- 410 ft ridge caps
Hardware
- 88Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
How does it differ from the 6-stall 4-rail kit?
Only the rail count changes; the stall size, layout and roof match. Four rails leave 14-1/4 in gaps and suit settled grown horses. The 4-rail kit is $14,334.52 and this one is $15,234.51.
Can I get wood walls on this layout?
Yes. The 6-stall wood-insert kit, $17,746.11, uses 5-rail panels with frames for boards you supply. The wood isn't included.
Can I add stalls later?
Ask us before you order if you may want more stalls later. If the program may grow, look at the 8-stall 5-rail kit, $19,796.53, too.
Do I need a permit?
Ask your county before you buy. Our mare motels aren't engineered structures and aren't built to a building code, so local rules set what's needed.
Can I cancel or return it?
No. All sales are final, and orders can't be cancelled once placed. Check the stall count and your site before you buy.
