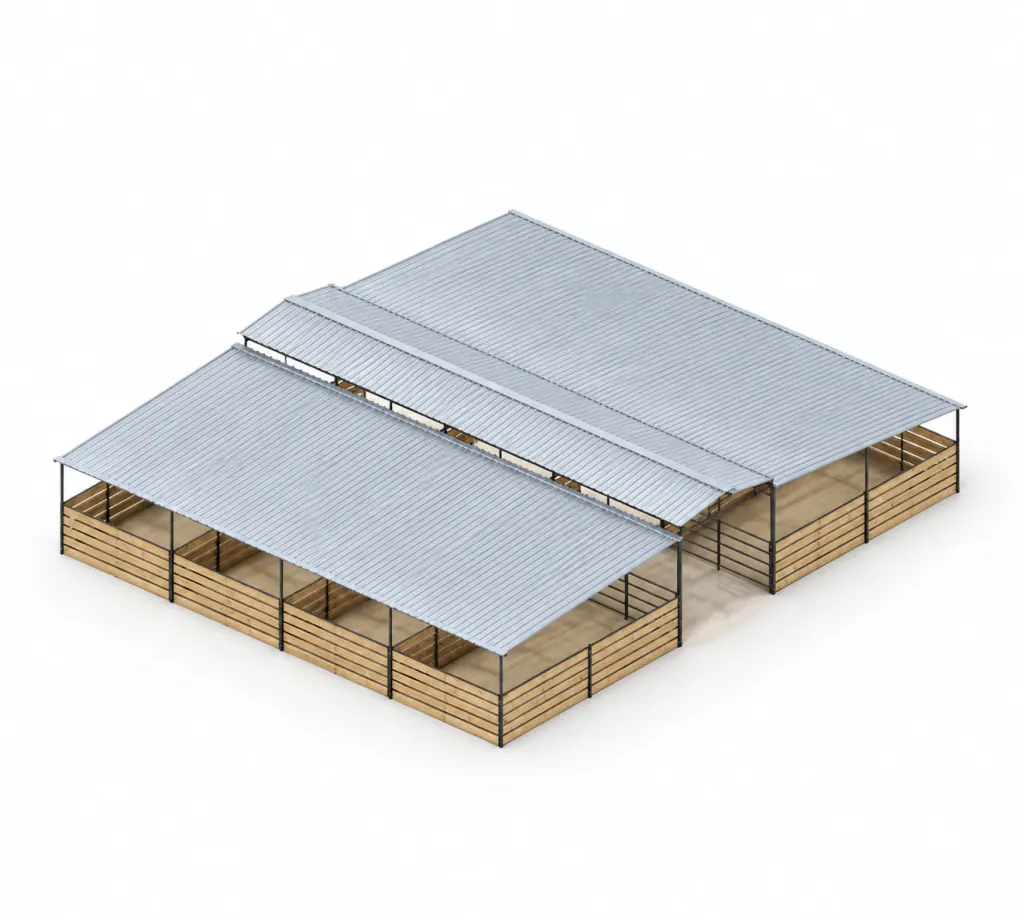

8-Stall Fully Covered Wood-Insert Mare Motel, 12x24 Stalls
No reviews yet.Write a review
$29,395.47
Wood not included. You supply the boards.
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA
This 8-stall fully covered wood-insert mare motel puts eight 12x24 ft stalls under one roof, four on each side of a 12 ft breezeway, on steel frames ready for your boards. It suits horses that spend most of the day in their stalls, laid out like a center aisle horse barn.
We weld the 5-rail panels, shade assemblies and gate combos at our shop. The kit also includes the PBR roof sheets, purlins, breezeway trusses and ridge caps, the ground posts, and the clamps and bolts.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
A covered aisle about 48 ft long
The building needs a level, well-drained site about 60 x 48 ft, and its covered aisle runs about 48 ft between the two rows. Every stall is roofed for its full 288 sq ft and has no run, so horses go out to paddocks or pasture for turnout. Every stall faces that aisle, so feeding and mucking out stay under the roof.
Lumber for eight stalls, concrete for the posts
You buy and fit the boards for the kit's wood-insert frames to finish the wooden horse stalls, so budget for lumber alongside the kit. The ground posts come in the kit and set in concrete you provide, with the panel legs kept out of it. No welding happens on site, and we quote installation separately if you want help.
Equipment for an eight-stall delivery
For an order this large, plan on equipment or several people to unload; a tractor with forks or a skid steer does the job. Ask us the length of the longest pieces, so the firm, level unloading area fits them. Look the load over and photograph any damage at the truck before the driver leaves.
The kit
- Stalls
- 8
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Fully covered stalls and breezeway
- Panel height
- 5 ft
- Rails
- 5 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- SKU
- BT-000593
Parts
12 ft x 5 ft 5-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 5
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 10-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 5-Rail
- Length
- 12 ft
- Rails
- 5 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
What’s included
Quantities for one kit.
Panels and gates
- 812 ft 5-rail panels
- 1012 ft 5-rail sloped shade assemblies
- 1012 ft 5-rail high-rise shade assemblies
- 812 ft 5-rail gate combos
- 36Wood-insert frame upgrades
Roof
- 6412 ft Z-purlins
- 36PBR roof sheets over the stalls
- 366.5 ft PBR roof sheets
- 512 ft center breezeway trusses
- 510 ft ridge caps
Hardware
- 118Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
How is it different from the 8-stall Heritage?
Heritage walls hold boards in welded C-channel frames, and the dapple grey powder coat comes with it. The 8-stall Heritage is $29,191.57; this kit is $29,395.47 in bare metal.
Can I add PBR siding?
Yes. Pick PBR siding under PBR wall siding to add PBR metal upper siding on the outer covered stall ends. The total updates as you choose.
Is there an open-run 8-stall with wood inserts?
Yes. The 8-stall wood-insert kit with PBR siding roofs the breezeway and the front 12 ft of each stall and leaves the back 12 ft open as a run, for $23,647.65.
Do I need a permit?
Check with your county before you order. These are not engineered structures and aren't built to a building code, so your local rules decide.
Can I cancel or return it?
No. All sales are final, and orders can't be cancelled once placed. Check the stall count and your site plan before you buy.
