12-Stall 5 ft Welded-Wire Mare Motel, Fully Covered, 12x24 Stalls
No reviews yet.Write a review
$44,159.09
Affirm payment options depend on the final order amount. View financing details
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

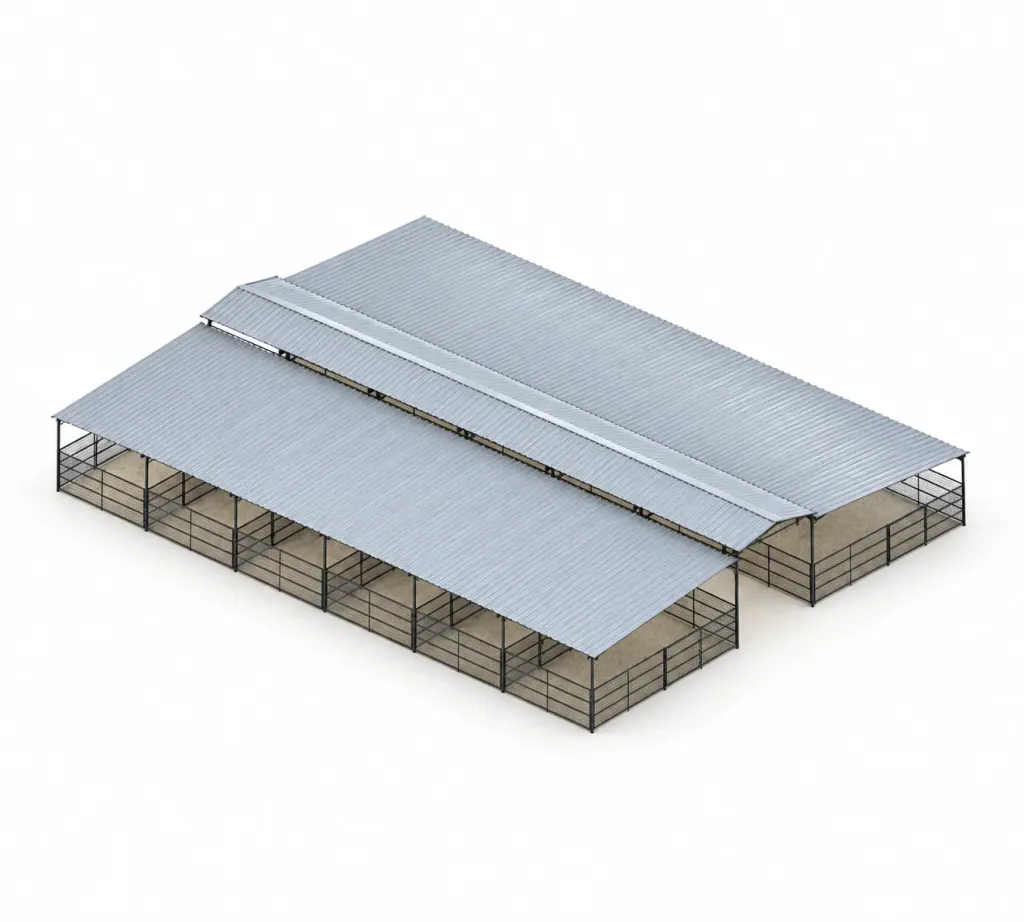

This 12-stall 5 ft welded-wire mare motel puts twelve fully roofed 12x24 ft stalls along a 12 ft breezeway, six facing six. That's a dozen wire mesh horse stalls with 5 ft panels and gate combos, for horses that spend most of the day in the stall.
We weld the mesh panels and gate combos at our shop. The kit includes the roof, from sheets and purlins to ridge caps, and the ground posts with the panel clamps and bolts.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
One covered aisle about 72 ft long
The two rows and breezeway take about 72 x 60 ft, and the covered aisle runs the long way. Both rows face it, so hay, water and the wheelbarrow can stay on one path under the roof. With no open runs, turnout goes in a paddock or pasture.
Site prep for a building this long
Choose level ground that drains along the whole length, then set the ground posts in concrete, which you supply. Keep the concrete off the panel legs. Nothing is welded on site, and installation on a kit this size can be quoted separately.
Room to set down a twelve-stall load
Lay out a firm, level unloading area with space to set the pieces down; we can tell you how long the longest ones are so it's big enough. Have a tractor with forks or a skid steer ready. Go through the load before the driver leaves and photograph any damage at the truck.
The kit
- Stalls
- 12
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Fully covered stalls and breezeway
- Panel height
- 5 ft
- Panels
- Welded wire
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- SKU
- BT-000665
Parts
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
What’s included
Quantities for one kit.
Panels and gates
- 1212 ft 5 ft welded-wire panels
- 1412 ft 4-rail sloped shade assemblies
- 1412 ft 4-rail high-rise shade assemblies
- 1212 ft 5 ft welded-wire gate combos
- 285 ft welded-wire shade assembly upgrades
Roof
- 9612 ft Z-purlins
- 54PBR roof sheets over the stalls
- 546.5 ft PBR roof sheets
- 712 ft center breezeway trusses
- 810 ft ridge caps
Hardware
- 171Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
How does it compare with the 12-stall 4-rail kit?
Same full roof and layout. The 12-stall 4-rail fully covered kit has open rails in place of welded wire, enough for settled horses, and is $37,141.39; this welded-wire kit is $44,159.09.
Can I get taller wire?
Yes. The 12-stall 6 ft kit's panels and gate combos stand 6 ft, a foot taller, and it is $49,282.19.
Can I add metal siding to the ends?
Yes. The PBR siding option adds PBR metal upper siding on the outer covered stall ends, and the total on this page updates.
Will they work as mare and foal stalls?
Ask us before you plan on it. We'll talk through the welded-wire panels and gate combos with you so you can decide whether they suit your mares and foals.
Do I need a permit?
That's your county's call, so ask before you order. Our mare motels are not engineered and aren't built to a building code.
Can I cancel or return it?
No. All sales are final, and orders can't be cancelled once placed. Check the stall count, wall style and your site before you buy.
