10-Stall Fully Covered Mare Motel, 4-Rail, 12x24 Stalls
No reviews yet.Write a review
$31,223.14
Affirm payment options depend on the final order amount. View financing details
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

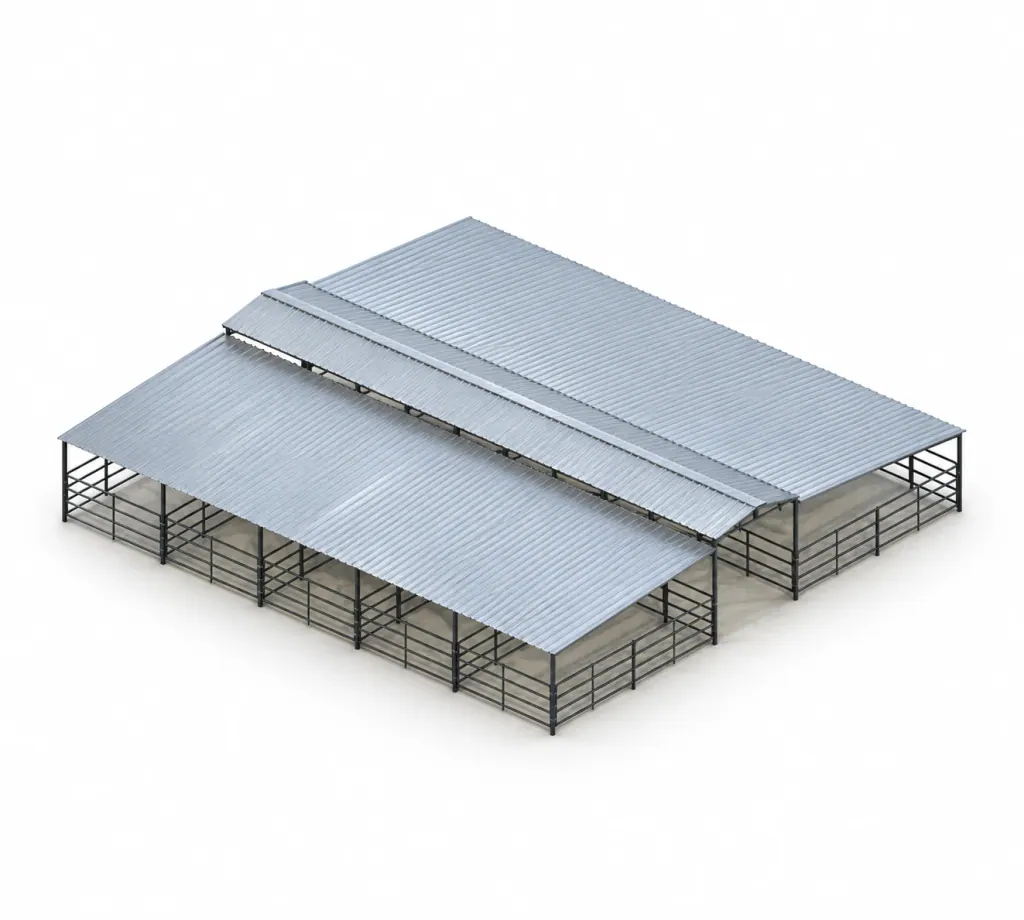

This 10-stall fully covered mare motel lines up five roofed 12x24 ft stalls on each side of a 12 ft breezeway. It's a covered horse barn with open rail walls, for a full-care boarding stable or a farm that keeps ten horses in through hot afternoons and wet weeks.
We weld every panel, gate combo and roof frame at our shop. Every roof sheet, purlin, truss and ridge cap for the stalls and aisle is in the kit, along with the ground posts and clamps.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
About 60 x 60 ft of dry stalls and aisle
The stalls and breezeway take about 60 x 60 ft. Each horse has 288 sq ft of dry floor, so bedding stays usable to the back panel, and you can feed and muck out all ten in a storm without leaving cover. There's no open run, so turnout needs its own paddock or pasture.
Site prep for a big roof
Level a pad that drains, with room around the building to drive a tractor or feed truck past the ends. Set the kit's ground posts in concrete, which you supply, and keep it away from the panel legs. Nothing is welded on site, and we quote installation separately.
Unloading a ten-stall load
Ask us for the length of the longest pieces before delivery day, so you can size the unloading area. Pick a firm, level spot, let the truck and trailer enter and turn around safely, and have a tractor with forks or a skid steer ready. Inspect the load and note any damage before the driver leaves.
The kit
- Stalls
- 10
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Fully covered stalls and breezeway
- Panel height
- 5 ft
- Rails
- 4 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- SKU
- BT-000569
Parts
12 ft x 5 ft 4-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 4
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 14-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 4-Rail
- Length
- 12 ft
- Rails
- 4 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
What’s included
Quantities for one kit.
Panels and gates
- 1012 ft 4-rail panels
- 1212 ft 4-rail sloped shade assemblies
- 1212 ft 4-rail high-rise shade assemblies
- 1012 ft 4-rail gate combos
Roof
- 8012 ft Z-purlins
- 45PBR roof sheets over the stalls
- 456.5 ft PBR roof sheets
- 612 ft center breezeway trusses
- 610 ft ridge caps
Hardware
- 144Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
How is it different from a horse barn with a breezeway?
It has the same covered aisle between two rows of stalls, but the walls are open steel rails rather than solid siding, so it breathes like a pen. For more cover at the ends, the PBR wall siding option adds metal upper siding on the outer covered stall ends.
How does it compare with the 10-stall open-run kit?
The 10-stall 4-rail kit with standard cover is $22,944.29 and roofs the breezeway and the front 12 ft of each stall, leaving an open run behind. This kit is $31,223.14 and roofs everything.
Can I add stalls later?
Order the count you'll grow into, and ask us first if you may want more stalls later. If ten may not be enough, the 12-stall version of this design is $37,141.39.
Do I need a permit?
Ask your county first. We don't engineer our mare motels or build them to a building code, so whether you need a permit depends on local rules.
Can I cancel or return it?
No. All sales are final, and orders can't be cancelled once placed. Settle the stall count and finish before you check out.
