4-Stall 24x24 Mare Motel with 12x24 Covers, 4-Rail
No reviews yet.Write a review
$16,095.04
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

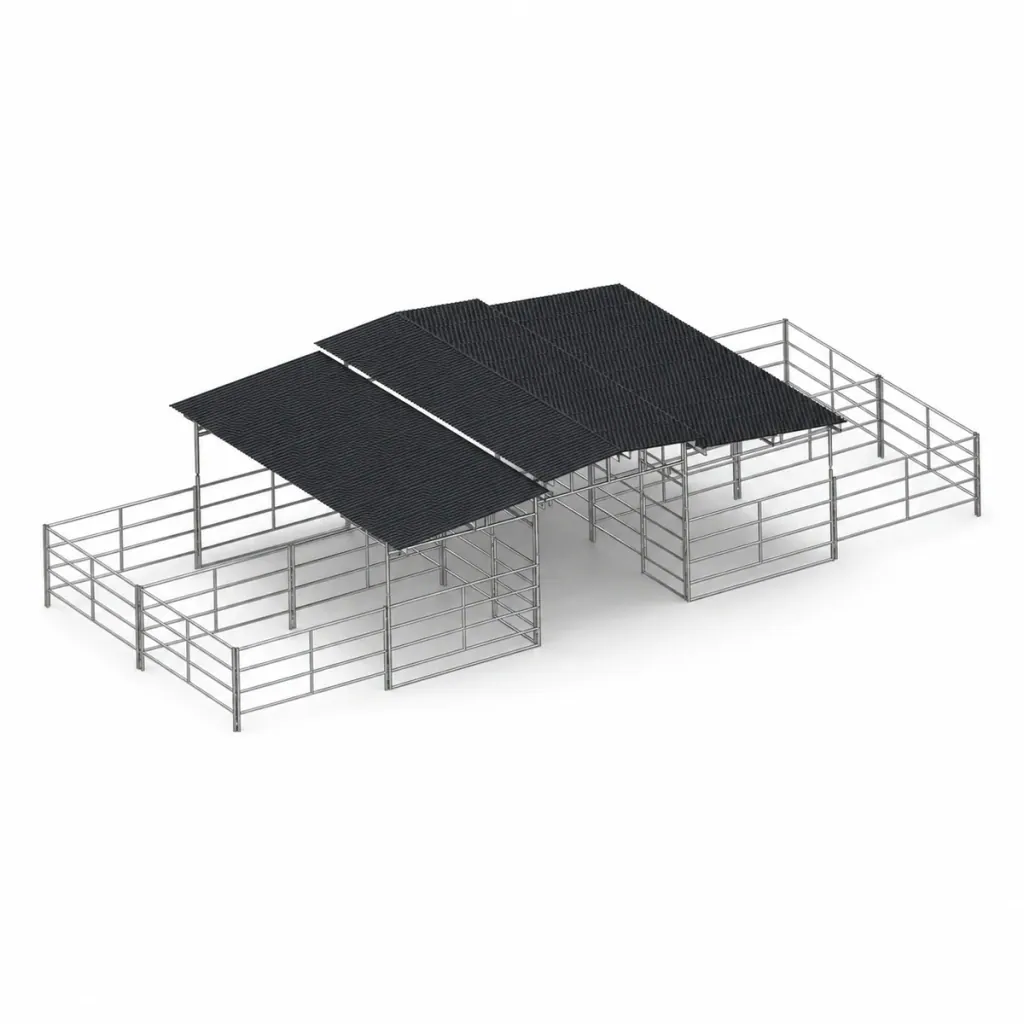

This 24x24 mare motel gives each of four horses a 24 x 24 ft stall on a covered 12 ft breezeway, roofed over the front 12 ft and open behind. These large horse stalls suit big horses, or horses that live in and need room to walk, turn and roll.
We weld the 4-rail panels, gate combos and roof frames at our shop. The kit includes the purlins, roof sheets and ridge caps for the breezeway and the four stall covers, with the ground posts and clamps.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
576 sq ft a horse, on about 60 x 48 ft
Each stall is 576 sq ft, which clears the 400 sq ft per horse that University of Minnesota Extension sets as the minimum for a dry lot, and 288 sq ft of it is under the roof. The four stalls and breezeway take about 60 x 48 ft, with both rows facing the covered aisle.
Concrete for the posts, room for the gates
The kit's ground posts go in concrete you supply; keep it off the panel legs. Level and drain a pad big enough for the building plus room to swing the gates and bring in a tractor. Nothing is welded on site, and installation is quoted separately.
Size the unloading area before delivery
Ask us how long the longest pieces in this kit are, and clear a straight unloading area near the pad with that much room. Have a tractor with forks or a skid steer ready, with space for the truck and trailer to turn around. Note any damage on the delivery receipt before the driver goes.
The kit
- Stalls
- 4
- Individual stall size
- 24 x 24 ft
- Rails
- 4 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Layout
- Two rows of stalls facing the breezeway
- Breezeway
- 12 ft wide
- Roof coverage
- Breezeway and the front 12 ft of each stall; open rear runs
- Panel height
- 5 ft
- Longest piece
- 24 ft
- SKU
- BT-000205
Parts
12 ft x 5 ft 4-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 4
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 14-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 4-Rail
- Length
- 12 ft
- Rails
- 4 rail
- Steel
- 14 gauge
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 1812 ft 4-rail panels
- 612 ft 4-rail sloped shade assemblies
- 412 ft 4-rail gate combos
Roof
- 2024 ft Z-purlins, 8-inch section
- 3212 ft stall roof sheets
- 326.5 ft raised breezeway roof sheets
- 312 ft center breezeway trusses
- 510 ft ridge caps
Hardware
- 126Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
Is 24x24 the size of the whole building?
No, it's the size of each stall. Four of these horse stalls with runs on a 12 ft breezeway make a much bigger building than our 12x24 kits, so measure your site before you order.
How does it compare with the 4-stall 12x24 kit?
The 4-stall kit with 12x24 stalls is $10,153.13. This one doubles each stall's floor area and roofed area for $16,095.04.
Can I get more than four 24x24 stalls?
Yes. Choose 6, 8, 10 or 12 under Number of stalls, and the kit and its total update for that layout.
What if a foal will share the stall?
Choose 5 rail under Panel style. Five rails leave 10-1/4 in between them where these four leave 14-1/4 in, and we suggest five for foals, ponies and minis.
Do I need a permit?
Ask your county before you order. Our mare motels aren't engineered structures and aren't built to a building code.
Can I cancel?
No. All sales are final and orders can't be cancelled.
