6-Stall Wood-Insert Mare Motel, 12x24 Stalls, Open Runs
No reviews yet.Write a review
$17,746.11
Wood not included. You supply the boards.
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

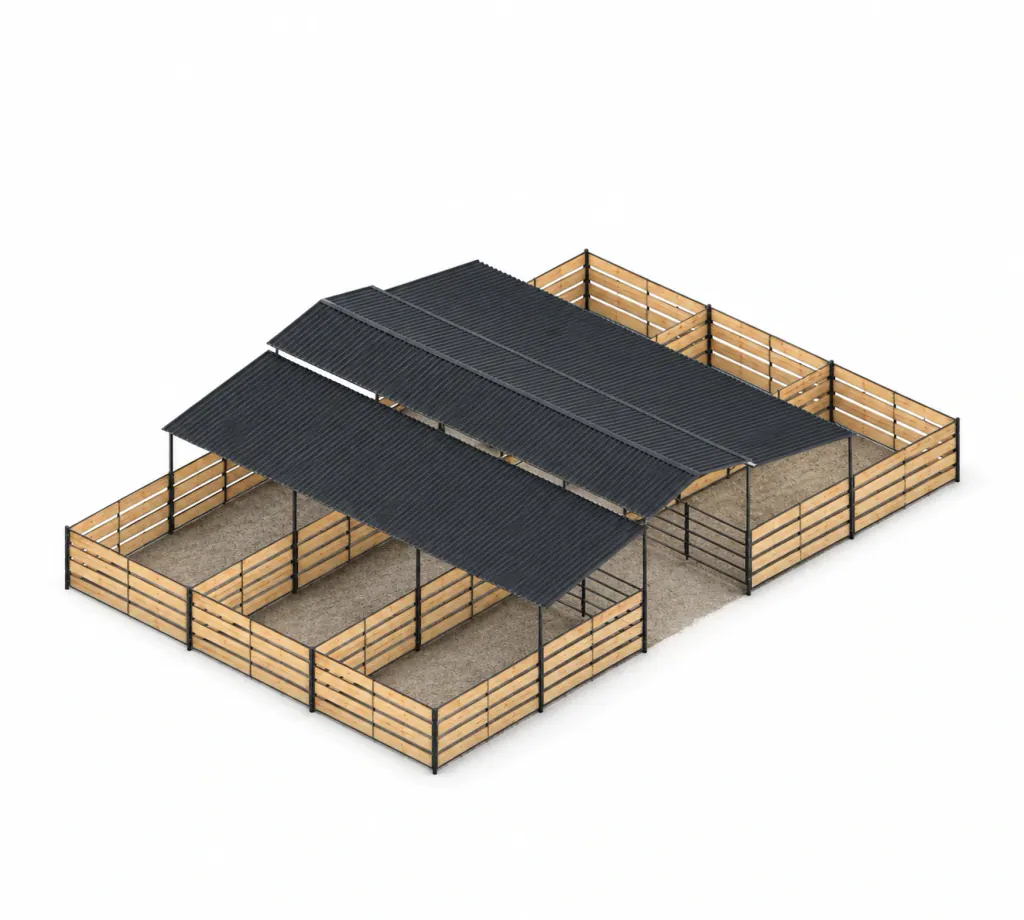

This 6-stall wood-insert mare motel sets three 12x24 ft stalls on each side of a 12 ft breezeway, roofed over the aisle and the front half of each stall, with an open run behind. Board the frames and you have steel and wood horse stalls for a family's horses, each with its own patch of sun.
We weld the panels, sloped shade assemblies and gate combos at our shop. The kit includes the roofing and its framing, the ground posts, and the panel clamps and bolts.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
About 60 x 36 ft, three stalls to a side
The building takes about 60 x 36 ft of level ground that drains. Under the roof each horse has 144 sq ft, within the 100 to 150 sq ft per horse Virginia Tech Extension gives for a run-in shed, and the 144 sq ft behind it is open run. These partially covered horse stalls line a roofed aisle about 36 ft long, so chores stay in the shade.
Boards and post concrete from you
You supply the boards and fit them into the kit's wood-insert frames. Set the kit's ground posts in concrete you provide, clear of the panel legs. Nothing is welded on site, and installation is quoted separately.
Room for the load, and for lumber later
Check with us on the longest piece in the kit, then keep a firm, level patch near the site that fits it. Clear a route for the truck and trailer to enter, turn and leave, and have a tractor with forks, a skid steer or extra hands ready. Leave space for the boards you'll stack later, and check the load before the driver leaves.
The kit
- Stalls
- 6
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Standard cover; open rear runs
- Panel height
- 5 ft
- Rails
- 5 rail
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- Longest piece
- 12 ft
- SKU
- BT-000717
Parts
12 ft x 5 ft 5-Rail Horse Corral Panel
- Length
- 12 ft
- Height
- 5 ft
- Rails
- 5
- Post
- 1-5/8 in
- Rail tubing
- 1-1/4 in
- Center support
- 1-5/8 in
- Rail spacing
- 10-1/4 in
- Steel
- 14 gauge
- Construction
- Welded end caps
Panel Gate Combo 12 ft 5-Rail
- Length
- 12 ft
- Rails
- 5 rail
- Steel
- 14 gauge
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
12 x 3 ft Galvalume PBR Roofing Panel
- Size
- 12 x 3 ft
- Steel
- 26 gauge
- Material
- Galvalume PBR
What’s included
Quantities for one kit.
Panels and gates
- 1412 ft 5-rail panels
- 812 ft 5-rail sloped shade assemblies
- 612 ft 5-rail gate combos
- 28Wood-insert frame upgrades
Roof
- 3012 ft Z-purlins
- 2712 ft PBR roof sheets
- 276.5 ft PBR roof sheets
- 412 ft center breezeway trusses
- 410 ft ridge caps
Hardware
- 88Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
What does PBR siding add?
It adds PBR metal upper siding on the outer covered stall ends. The 6-stall wood-insert kit with siding is $18,368.03, with the same panels, layout and roof; this one is $17,746.11.
Is there a fully covered version?
Yes. The fully covered 6-stall wood-insert kit roofs every stall end to end, so there are no runs, for $22,619.35. Plan turnout elsewhere if you choose it.
Is there an all-steel 6-stall?
Yes. The 6-stall 5-rail kit has the same two rows, roof and open runs with plain steel rails and no board frames, for $15,234.51.
How does the shed row layout compare?
The 6-stall wood-insert shed row puts all six stalls in one line on a strip about 72 x 36 ft, with the same cover and open runs, for $22,813.13. It suits a long, narrow site.
Do I need a permit?
Your county decides, so check before you order. These mare motels are not engineered structures and aren't built to a building code.
Can I cancel?
No. All sales are final, and orders can't be cancelled once placed, so settle the layout, roof coverage and finish first.
