6-Stall 5 ft Welded-Wire Mare Motel, Fully Covered, 12x24 Stalls
No reviews yet.Write a review
$23,284.57
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA
This 6-stall 5 ft welded-wire mare motel puts six fully roofed 12x24 ft stalls on a 12 ft breezeway, three facing three. These wire mesh horse stalls have 5 ft panels and gate combos, and the full cover suits horses that spend most of the day in the stall.
We weld the wire panels and stall gate combos at our shop. Roof sheets, purlins, trusses, ridge caps, ground posts, and the panel clamps and bolts all come in the kit.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
Six roofed stalls on about 60 x 36 ft
The building takes about 60 x 36 ft. Each stall has 288 sq ft under roof, well past the 100 to 150 sq ft per horse Virginia Tech Extension suggests for a run-in shed. Both rows face the covered aisle, and with no open runs, turnout goes in a separate paddock.
Your concrete, set clear of the panel legs
You set the ground posts in concrete, which you provide, and keep it clear of the panel legs. Nothing gets welded on site. Choose level ground that drains, and ask us for an installation quote if you want it built for you.
Check the load against What's included
Choose a firm, level unloading area close to the build, sized after you ask us how long the longest pieces are. Make sure the truck and trailer can get in, turn and leave. Before the driver goes, check the pieces against the What's included list and note any damage.
The kit
- Stalls
- 6
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Fully covered stalls and breezeway
- Panel height
- 5 ft
- Panels
- Welded wire
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- SKU
- BT-000653
Parts
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
What’s included
Quantities for one kit.
Panels and gates
- 612 ft 5 ft welded-wire panels
- 812 ft 4-rail sloped shade assemblies
- 812 ft 4-rail high-rise shade assemblies
- 612 ft 5 ft welded-wire gate combos
- 165 ft welded-wire shade assembly upgrades
Roof
- 4812 ft Z-purlins
- 27PBR roof sheets over the stalls
- 276.5 ft PBR roof sheets
- 412 ft center breezeway trusses
- 410 ft ridge caps
Hardware
- 92Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
Is there a taller version?
Yes. The 6-stall 6 ft welded-wire kit has the same stall size, layout and roof, with panels and gate combos a foot taller, for $26,006.36. This 5 ft kit is $23,284.57. Ask us if you're unsure which height to pick.
Will these work as foaling stalls?
Ask us before you plan foaling stalls around this kit. We'll go through the wire panels and gate combos with you first, so you can decide with the details in hand.
Can I add stalls later?

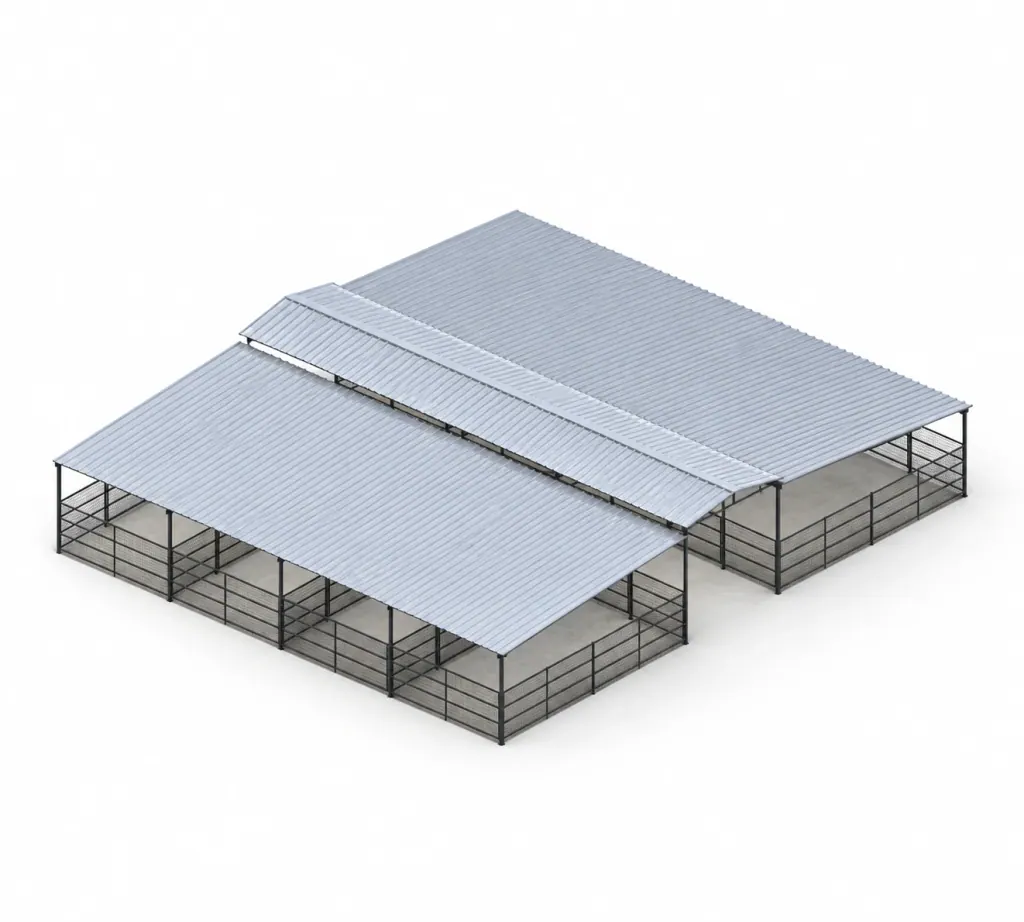

Ask us before you count on adding to it. If you think you'll need more room, choose a larger count now: the same 5 ft welded-wire kit with eight stalls is $30,226.71.
What finishes are offered?
The listed total is bare metal, which weathers to a rust patina. Dapple grey or black powder coat, or a custom color, costs more; pick one under Finish and the total updates before you buy.
Do I need a permit?
Ask your county first. We don't engineer our mare motels or build them to a building code, so whether you need a permit depends on local rules.
Can I cancel or return it?
No. Every sale is final and an order can't be cancelled once placed, so confirm the stall count and site layout first.
