How to connect corral panels

How to connect corral panels

Measure the upright post, then match the panel clamp, adapter, wood fitting or hinge to the connection.

3 min readUpdated September 12, 2026

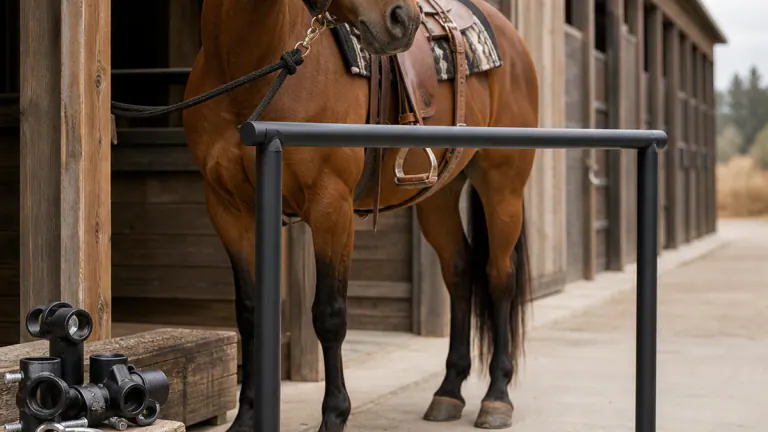

Panel clamps, corral posts, and gate hardware
In this guide5 sections

Short answer

Start by measuring the upright post, not the rail: standard Blacktail horse panels have 1-5/8 in posts and take the 1-5/8 in clamp, from $4.50. Use the adapter where a 1-5/8 in panel meets a 2-3/8 in post; kits already include their clamps, and cattle panels chain together instead.

Post sizesWherePartFrom
1-5/8 in to 1-5/8 inHorse panel to horse panel1-5/8 in panel clamp$4.50
1-5/8 in to 2-3/8 inPanel to a gate hang post or set ground postClamp adapter$8.50
2-3/8 in to 2-3/8 inLarger posts on both sides2-3/8 in panel clamp$6.95
1-5/8 in post to woodTimber held on a panelWood panel clamp$7.95

Measure the outside diameter of the upright post before choosing a corral panel clamp. Standard Blacktail horse panels use 1-5/8-inch clamps, a 2-3/8-inch post takes the 2-3/8-inch clamp, and the adapter joins one size to the other.

Loose horse panels require panel connection clamps ordered separately. Round pen, stall, mare motel, shelter and arena kits include their clamps. Cattle panels do not use clamps at all; they connect with a pre-welded chain and chain keeper.

Connecting 1-5/8-inch horse panels

The galvanized and bare-metal 1-5/8-inch panel clamps connect matching horse-panel posts. Measure the upright, rather than the smaller horizontal rail.

Each clamp comes with its carriage bolt and nut. Put the smooth, rounded end of the bolt on the inside of the pen or stall so the animals cannot catch on the nut.

Connecting different post sizes

The galvanized adapter is for where a 1-5/8-inch panel meets a 2-3/8-inch post, such as a gate hang post or a set ground post. It is 3/16-inch steel, 5 inches long, with a 5/8-inch bolt hole, and the bolt and nut are included.

If both uprights are 2-3/8 inches, use the galvanized 2-3/8-inch panel clamp. The mixed-size adapter is not a substitute for a connection between two equally sized larger posts.

Kit hardware and loose panels

The complete 40 ft, 50 ft and 60 ft Blacktail round-pen kits include their listed panel clamps. Loose horse panels and individual additions to an enclosure require separate connection clamps.

Count the complete layout, gates and transitions when confirming hardware quantities. Mixing a different manufacturer’s panels may change the connection needed.

Wood clamps, posts and hinges

Wood-attach clamps hold timber to a panel and are different from panel-to-panel connection clamps. The round side fits a 1-5/8-inch panel post and the flat side takes a 2-inch-thick board. Wood-insert panels come either with wood insert clamps or with welded wood-insert mounts that fasten with lag bolts; timber and panel connection clamps are separate.

The hardware range also includes 8 ft posts and male or female post hinges. Compare the post diameter, hinge pin and mating part before ordering a replacement.

Continuous fence clips attach a permanent fence section to a set post. They do not serve the same purpose as a clamp joining freestanding panels.

Questions

Questions before you buy

Still deciding? Call (619) 914-6657

Do I measure the post or the rail for a panel clamp?

Measure the outside diameter of the upright post. Standard Blacktail horse-panel posts use 1-5/8-inch connections; the horizontal rail is a different size.

When do I need the 2-3/8-inch to 1-5/8-inch adapter?

Use the adapter where a 1-5/8-inch panel meets a 2-3/8-inch post. If both sides are 2-3/8 inches, use the 2-3/8-inch panel clamp instead.

Should I choose galvanized or bare metal?

Choose the finish to match the adjoining panels and intended appearance. Compare current product prices rather than assuming one finish has an added charge.
