Continuous fence planning guide

Continuous fence components and installation planning

Compare 10 ft and 20 ft sections, posts and clips, then confirm the installation details for the full fence line.

3 min readUpdated September 12, 2026

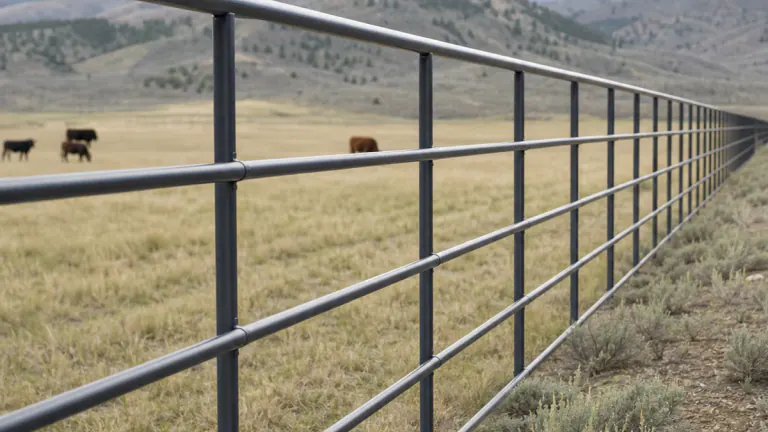

Long welded sections of continuous ranch fence
In this guide5 sections

Short answer

Start with 20 ft sections for the straight runs, from $160, and fill short returns with 10 ft sections. Set a post at each end and the midpoint of every section, and order one clip per rail at each post; posts and clips are sold separately.

PartSizeUse it forFrom
20 ft section4 or 5 railsLong straight runs; posts 10 ft apart$160
10 ft section4 or 5 railsShort returns and tight spots$124.95
Fence clipFor 1-1/4 in pipe, 10 gaugeOne per rail at every post$1.55

Continuous fence uses long welded sections attached to posts set along a permanent fence line. Freestanding corral panels connect to each other and serve a different layout.

Blacktail offers 10 ft and 20 ft continuous fence sections in four-rail and five-rail versions. Every section is 4 ft tall with 1-1/4 in rails and round-tube verticals, not flat strap. Posts and connection clips are separate purchases.

20 ft sections for longer runs

Compare 20 ft sections for a pasture boundary, lane or frontage where the run can accommodate the full length. Plan corners and gates before counting sections.

The verticals are spaced evenly and the middle of each section is left open, so posts go at both ends and at the midpoint. The 20 ft sections come in bare metal to paint or leave to weather, and powder coating is offered.

10 ft sections for shorter runs

Compare 10 ft sections for shorter returns and parts of the layout where a 20 ft section will not fit. Four-rail and five-rail versions are available.

Survey the grade and direction of the line before ordering. The shop can make elbow sleeves to carry the rails around a corner; ask about them with the order.

Posts and continuous fence clips

The continuous fence clip is listed for 1-1/4-inch pipe, in 10-gauge steel with a 1/4-inch hole. It holds a rail to a wood or steel post with a self-tapping screw; it is a different part from a clamp joining freestanding corral panels.

Count one clip per rail at every post, then add the screws. The hardware catalog includes posts in several sizes.

Plan the installation

Mark the boundary, corners, gates and changes in grade. Choose section lengths against that layout, then mark a post at each end and the midpoint of every section.

The sections are 4 ft tall. Clip them to the posts about 12 in off the ground for a 5 ft fence line. Confirm post embedment and concrete for your ground conditions.

Arrange access for unloading and placing the sections. Prepare the posts in accordance with the confirmed installation plan before fitting the fence.

Questions

Questions before you buy

Still deciding? Call (619) 914-6657

Is continuous fence freestanding?

No. The sections attach to set posts. Freestanding corral panels are the alternative for an enclosure that needs to move.

Are posts and clips included?

Posts and continuous fence clips are sold separately. Confirm the compatible parts and quantities for the complete fence line.

Should I use 10 ft or 20 ft sections?

Compare 20 ft sections for longer runs and 10 ft sections where a shorter length fits the layout. Plan gates, corners and grade changes before ordering.

How far apart should the posts be?

Set a post at each end of a section and one at its midpoint, where the section is left open for it. That puts posts 10 ft apart on 20 ft sections.
