Horse corral panel sizes and layout ideas

Compare 10 ft and 12 ft panels, rail spacing, wire mesh, wood inserts and the taller Mustang panel.

3 min readUpdated September 12, 2026

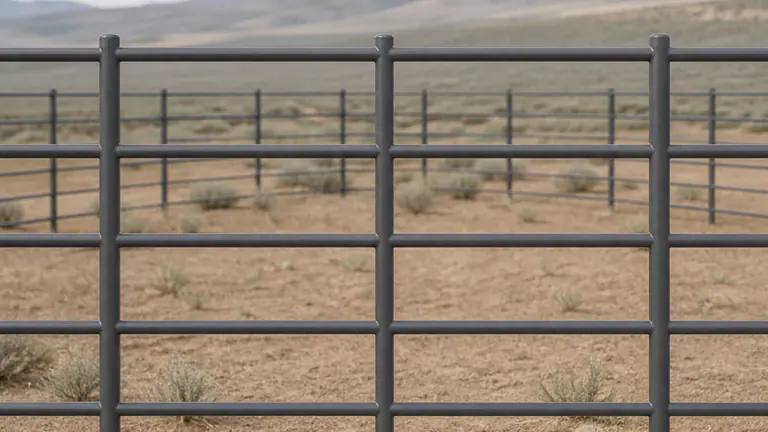

Welded horse corral panels
In this guide7 sections

Short answer

Start with 12 ft by 5 ft four-rail panels for straight runs, from $129.95, and use 10 ft panels for shorter sections and turns. Choose five rails (10-1/4 in spacing) over four (14-1/4 in) for closer openings; clamps are sold separately.

PanelSizeBest forFrom
Standard 10 ft10 ft × 5 ftShorter sections and turns$104.95
Standard 12 ft12 ft × 5 ftLong straight runs$129.95
Wire mesh12 ft × 5 ftSmall openings: a 2 × 3 in grid$278
Wood insert10 ft or 12 ft × 5 ftTimber infill; wood not included$165.95
Mustang24 ft × 6 ftA taller six-rail run$395

Choose corral panels by the enclosure layout, panel height and openings between rails. Blacktail’s standard horse panels are 10 ft or 12 ft long and 5 ft tall; the Mustang panel is 24 ft long and 6 ft tall.

The range includes four-rail, five-rail, wire-mesh and wood-insert panels. The right combination depends on the horses, the ground and the connections to gates or existing fencing.

12 ft panels for longer runs

Black horse standing inside a fenced corral
Photo by Amar Preciado on Pexels

A 12 ft panel covers more of a straight fence line than a 10 ft panel. Both four-rail and five-rail versions are 5 ft tall and use 14-gauge steel.

The standard 10 ft and 12 ft panels use 1-5/8-inch posts and 1-1/4-inch rails. The rails run inside the posts before welding, the joints are coped, and the end caps are welded shut so water and wasps stay out. Loose panels do not include panel connection clamps; size the clamp to the upright post.

Mark the full run and gate openings before counting panels. Allow for the way the panels meet at corners and connect to any existing fence.

10 ft panels for shorter sections

The 10 ft panels are useful for shorter runs, changes in direction and layouts where a 12 ft section does not fit. Four-rail and five-rail versions are available.

Check access to the site and how the panels will be moved into position. If you are building a complete circular pen, compare the round-pen kits and their included components.

Compare rail spacing and wire mesh

Two horses standing behind ranch fencing
Photo by Castorly Stock on Pexels

Standard four-rail panels list 14-1/4-inch rail spacing; five-rail panels list 10-1/4 inches. The 12 ft by 5 ft wire-mesh panel has a 2 by 3-inch grid on four structural rails.

Consider the size and behavior of the animals and what is on the other side of the enclosure. Choose the opening pattern as well as the panel length.

The 6 ft tall Mustang panel

The Mustang is a 24 ft by 6 ft panel with six rails and 1-5/8-inch steel tubing. Its greater height and length make it a different layout choice from the standard 5 ft panels.

Confirm the space needed to unload, position and connect a 24 ft section before ordering.

Wood-insert panels

Wood-insert panels hold the boards one of two ways: wood insert clamps, or welded wood-insert mounts that fasten with 1-1/4 by 1/4-inch lag bolts. The 10 ft and 12 ft panels listed here include the wood insert clamps; ask the shop if you want the welded-mount version.

Both lengths take 2 by 10 boards. Wood is excluded, and panel connection clamps are sold separately.

Compare the panel options

Start with length, height and infill.

PanelSizeAvailable infill
Standard 10 ft10 ft × 5 ftFour or five rails
Standard 12 ft12 ft × 5 ftFour or five rails
Wire mesh12 ft × 5 ft2 × 3 in grid on four rails
Wood insert10 ft or 12 ft × 5 ftFive rails with wood insert clamps or welded mounts for 2 × 10 boards; wood excluded
Mustang24 ft × 6 ftSix rails

Questions

Questions before you buy

Still deciding? Call (619) 914-6657

Should I choose 10 ft or 12 ft horse panels?

Compare the full run and its gate openings. A 12 ft panel covers more straight distance per section; 10 ft panels suit shorter sections and changes in direction. Both lengths are available at 5 ft tall.

What changes between four-rail and five-rail panels?

The standard four-rail panel lists 14-1/4-inch rail spacing, compared with 10-1/4 inches for five rails. Both use 14-gauge steel. Match the openings to the animals and the enclosure.

Are panel clamps included?

Panel connection clamps are sold separately on loose panels. Quantity depends on the complete layout, gates, posts and connections to existing fencing.

Is wood included with wood-insert panels?

No. The listed panels include wood insert clamps (a welded-mount version that fastens with lag bolts is also available), but the timber and panel connection clamps are separate. Both lengths take 2 by 10 boards; confirm the quantity before ordering the wood.
