Types of horse gates

Bow gates, panel combos and arena swing gates

Choose the opening for the job, then compare frame dimensions, rail arrangements, infill and connections.

3 min readUpdated September 12, 2026

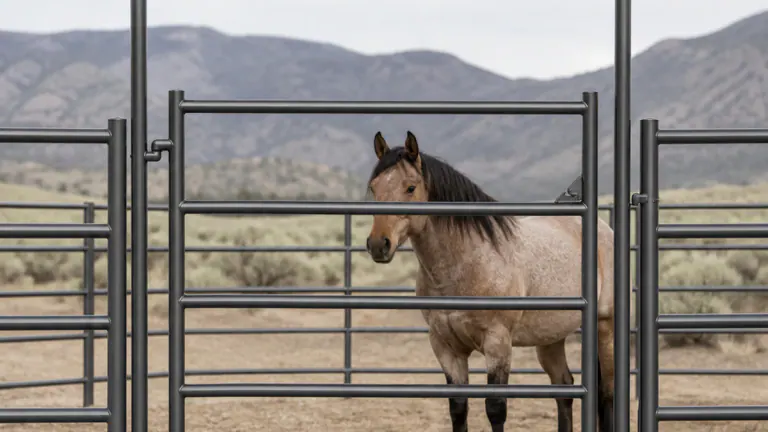

Welded steel bow gates, panel combos, and arena swings
In this guide5 sections

Short answer

Start with a bow gate for walk-through access: a 4 ft 6 in opening in an 8 ft tall frame, from $185. For equipment, use a 10 ft or 12 ft arena swing gate; a 10 ft or 12 ft panel gate combo still opens only 4 ft 6 in.

GateOpeningComes withFrom
Bow gate, 8 ft tall4 ft 6 in walk-throughChain and keeper latch$185
10 ft panel gate combo4 ft 6 in gate5-1/2 ft fixed panel, clamps, latch$300
12 ft panel gate combo4 ft 6 in gate7-1/2 ft fixed panel, clamps, latch$390
10 ft swing gate, open rails10 ft wide, 4 ft tall leaf2-3/8 in hinge post, 1-5/8 in latch post, drop latch$335
12 ft swing gate, open rails12 ft wide, 4 ft tall leaf2-3/8 in hinge post, 1-5/8 in latch post, drop latch$400

Choose a bow gate for a walk-through opening, a panel-and-gate combination for access within a panel run, or an arena swing gate for a wider opening.

Compare the clear opening, frame dimensions and adjoining posts before choosing a gate. The length of a panel-and-gate combination is not necessarily its clear opening.

Bow gates for walk-through access

Bow gates are 8 ft tall and 4 ft 6 in wide, with a walk-through opening of about 4-1/2 ft. The overhead bow forms part of the gate frame. The gate swings both in and out and latches with an attached chain and chain keeper.

Four-rail and five-rail versions are available, plus a five-rail gate with welded wood-insert tabs. Clamp the gate to the adjoining panel posts with panel clamps.

A gate within a panel run

Panel-and-gate combinations combine a fixed panel section with a bow gate. The range includes 10 ft and 12 ft combinations with open rails, wood inserts and a wire-mesh option. On every combo the gate opening is 4-1/2 ft; the rest of the length is fixed panel.

A combo clamps to the neighboring panels with panel clamps, so it needs no set post unless there is no panel to clamp it to. Choose the infill and rail arrangement for the adjoining enclosure.

Arena swing gates

Arena swing gates are 4 ft tall and come in 10 ft and 12 ft widths. Hang one 10 to 12 in off the ground to line up with a 5 ft panel line. Each gate ships with a 2-3/8 in hang post with welded ball-bearing hinges, a 1-5/8 in latch post, a drop latch and an adjustable J-bolt. Set the hang post in concrete.

Allow room for the swing and check the finished ground level at the opening. Include the equipment you need to bring into the arena when deciding the width.

Wood inserts, wire mesh and hardware

Wood-insert gates have welded tabs between the rails so you can screw 2 by 10 boards in. Wood is excluded; confirm the board quantity before buying timber.

The 12 ft wire-mesh combination has welded wire mesh behind four rails. Confirm that any replacement hinges or hardware match the gate.

Questions

Questions before you buy

Still deciding? Call (619) 914-6657

What is a bow gate?

A bow gate is a walk-through gate within a frame that arches above the opening. Ours are 8 ft tall with an opening of about 4-1/2 ft, swing both ways and latch with a chain and chain keeper.

Is the panel-combo length the gate opening?

No. The 10 ft and 12 ft combos both have a 4-1/2 ft gate opening; the rest of the length is a fixed panel section.

Which gate should I compare for equipment access?

Compare the 10 ft and 12 ft arena swing gates and confirm the equipment width, gate swing and available clearance. Each gate includes its hang and latch posts.
