Arena size guide

What size arena do I need?

Compare 80x120, 120x200 and 140x240 arena footprints, then plan gates, access and the ground preparation.

3 min readUpdated September 12, 2026

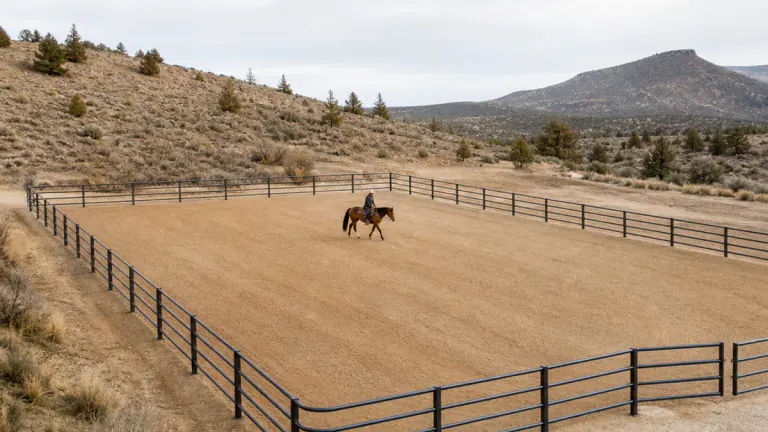

Complete welded steel riding arena perimeter
In this guide6 sections

Short answer

Start at 80x120: 38 ten-foot panels, two gates and 82 clamps, from $5,000. Go to 120x200 or 140x240 for more working room; ground posts, grading and footing are not in any kit.

SizeAreaIn the kitFrom
80 × 120 ft9,600 sq ft38 panels, 2 gates, 82 clamps$5,000
120 × 200 ft24,000 sq ft63 panels, 2 gates, 130 clamps$7,840
140 × 240 ft33,600 sq ft74 panels, 2 gates, 152 clamps$9,090

Choose an arena footprint around the way you ride, the available ground and the space needed outside the fence. Blacktail lists perimeter kits in 80x120, 120x200 and 140x240 sizes.

The kit supplies the arena perimeter. Ground preparation, base and riding surface are separate parts of the project.

80x120: the smaller footprint

An 80x120 arena covers 9,600 square feet inside its rectangular footprint. It is the smallest standard arena size in the range. The kit is 38 10 ft panels, the two gates and 82 panel clamps.

Stake the perimeter and walk the planned exercises before ordering. Include room outside the arena for access and maintenance.

120x200: more working room

A 120x200 arena covers 24,000 square feet. Four-rail and five-rail perimeter kits are available, each with 63 10 ft panels, the two gates and 130 panel clamps.

Consider how the added length and width affect the riding space, drainage, footing quantities and maintenance access.

140x240: the largest standard layout

A 140x240 arena covers 33,600 square feet. The kit is 74 10 ft panels, the two gates and 152 panel clamps. Compare the full project area, not just the fence dimensions, when setting out this layout.

Check the space needed for turning equipment, moving horses and maintaining the surface around the gates.

Gates and custom layouts

Every arena kit includes two ways in: a 10 ft panel gate combo with a 4-1/2 ft walk-through, and a 10 ft full swing gate that hangs on a 2-3/8 in post with welded hinges and latches to a second 2-3/8 in post. If you need a wider opening, add another gate to the order.

Ask about a custom footprint when the standard sizes do not fit the ground. If the project is a circular training pen, compare the separate round-pen kits.

Compare standard arena footprints

Every size uses the same panel: 10 ft long and 5 ft tall, with 1-5/8 in posts, 1-1/4 in rails run through the posts, a center support tube and welded end caps. Bare metal is the listed price and weathers to a ranch patina; powder coat costs more.

Ground posts are not included. Set a post every two to three panels and clamp the panels to it; do not set or concrete the panel legs themselves.

Arena sizeFootprint areaPanels and clampsRail options
80 × 120 ft9,600 sq ft38 panels, 82 clampsFour or five rails
120 × 200 ft24,000 sq ft63 panels, 130 clampsFour or five rails
140 × 240 ft33,600 sq ft74 panels, 152 clampsFour or five rails

Questions

Questions before you buy

Still deciding? Call (619) 914-6657

What arena sizes are available?

The standard perimeter kits are 80x120, 120x200 and 140x240, with four-rail and five-rail versions. Custom footprints can be discussed with the shop.

Does the kit include arena footing?

No. The package is the perimeter: panels, two gates and panel clamps. Ground posts, grading, drainage, base and the riding surface are separate.

Are gates included?

Yes. Each kit includes a 10 ft panel gate combo with a 4-1/2 ft walk-through and a 10 ft full swing gate with its 2-3/8 in hang and latch posts. Extra gates can be added for a wider opening.

How should I compare arena sizes?

Stake the footprint, account for the intended riding use and allow room for access outside the perimeter. Include ground preparation and maintenance in the comparison.
