Cattle corral buying guide

Cattle corral layouts: pens, panels and gates

Compare a 20x20 pen, a side-by-side pair, and loose 20 ft panels and gates for the layout you need.

3 min readUpdated September 12, 2026

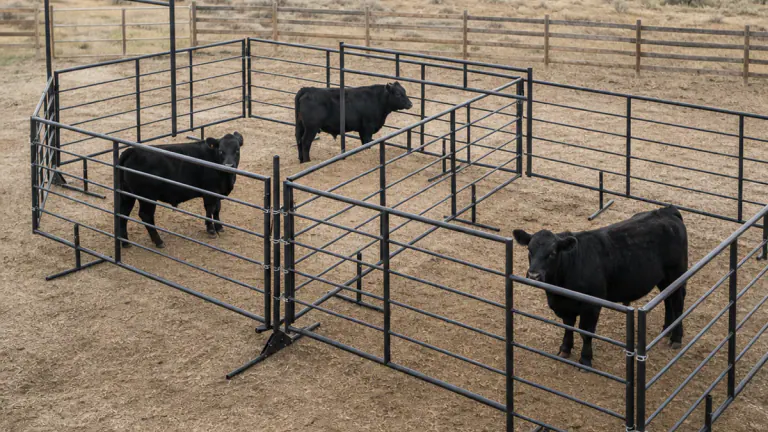

Portable steel cattle corral and livestock panels
In this guide5 sections

Short answer

Start with the 20x20 pen: three 20 ft cattle panels and a 20 ft gate combo that chain together, in 5 ft or 6 ft height, from $1,895. Add the side-by-side pair when you need two pens; no clamps are needed.

OptionSizeIn the kitFrom
One pen20 × 20 ft3 panels, 1 gate combo$1,895
Two pens side by sideTwo 20 × 20 ft pens5 panels, 2 gate combos$3,395
Loose cattle panel20 ft long, 5 or 6 ft tallChain and keeper, detachable feet$375
Gate combo20 ft long, 5 or 6 ft tallChain and keeper, detachable feet$795.95

Blacktail’s cattle range includes a 20x20 pen, two 20x20 pens side by side, a 20 ft cattle panel and a 20 ft gate combination. Choose a complete pen or plan a layout from separate sections.

Cattle panels are heavier than the horse line: a 2-3/8 in frame, six 1-1/4 in rails and detachable feet. They do not use panel clamps. Each panel and gate has a pre-welded chain and chain keeper, so sections chain together without extra hardware.

A single 20x20 pen

The 20x20 pen provides a 400-square-foot square enclosure, built in 5 ft or 6 ft height. The panels connect with the included chains and keepers, with no welding or cutting.

Plan capacity around the cattle, how long they will be held and the way they enter and leave. The footprint alone is not a handling-system design. Chutes, alleys and other handling equipment are not part of the range.

Two pens side by side

The paired kit combines two 20x20 pens. Plan the gate positions and movement between the spaces before committing to the layout.

Confirm the full outside dimensions and any shared connections. Leave room for people and equipment to work around the enclosure.

20 ft cattle panels

The 20 ft cattle panel has a 2-3/8 in frame, six rails run through the uprights, coped joints, welded end caps and detachable feet that let the panels stack flat for freight. It comes in 5 ft or 6 ft height, in bare metal that weathers like oil-field pipe, and powder coating is offered.

Compare loose panels when the complete pen kits do not match the intended layout. Each panel carries its own chain and keeper, so count panels and gates rather than connectors. Horse-panel clamps are not part of the cattle line.

20 ft gate combinations

The freestanding 20 ft gate combination adds access to a cattle-panel layout. It matches the panels: 2-3/8 in frame, 1-1/4 in rails, detachable feet and a 5 ft or 6 ft height.

Plan equipment access and cattle movement around the gate location. It chains to the adjoining panels the same way the panels chain to each other.

Questions

Questions before you buy

Still deciding? Call (619) 914-6657

Which cattle pen layouts are listed?

The catalog offers a single 20x20 pen and two 20x20 pens side by side, plus loose 20 ft cattle panels and gate combinations.

Do cattle panels need panel clamps?

No. Every cattle panel and gate has a pre-welded chain and chain keeper, and that is how they connect. Horse panels are the line that uses 1-5/8-inch panel clamps.

How many cattle fit in a 20x20 pen?

Capacity depends on the animals, holding duration and intended operation. Confirm the layout with the people responsible for managing the cattle rather than choosing capacity from floor area alone.

Does this catalog include a complete handling system?

The listed cattle range is pens, panels and gate combinations. Chutes, alleys and other handling equipment are separate from these products.
