4-Stall Heritage Mare Motel, Wood Board, Fully Covered
No reviews yet.Write a review
$15,706.80
Wood not included. You supply the boards.
Size & layout
Stall count, dimensions and row style.
Roof coverage
Stall coverage and breezeway roof.
Walls & rails
Panel style and optional PBR wall siding.
Color & quantity
Steel finish and number of complete kits.
Dapple grey included.
Number of kits
- Estimated delivery in 8 weeks
- Made in the USA

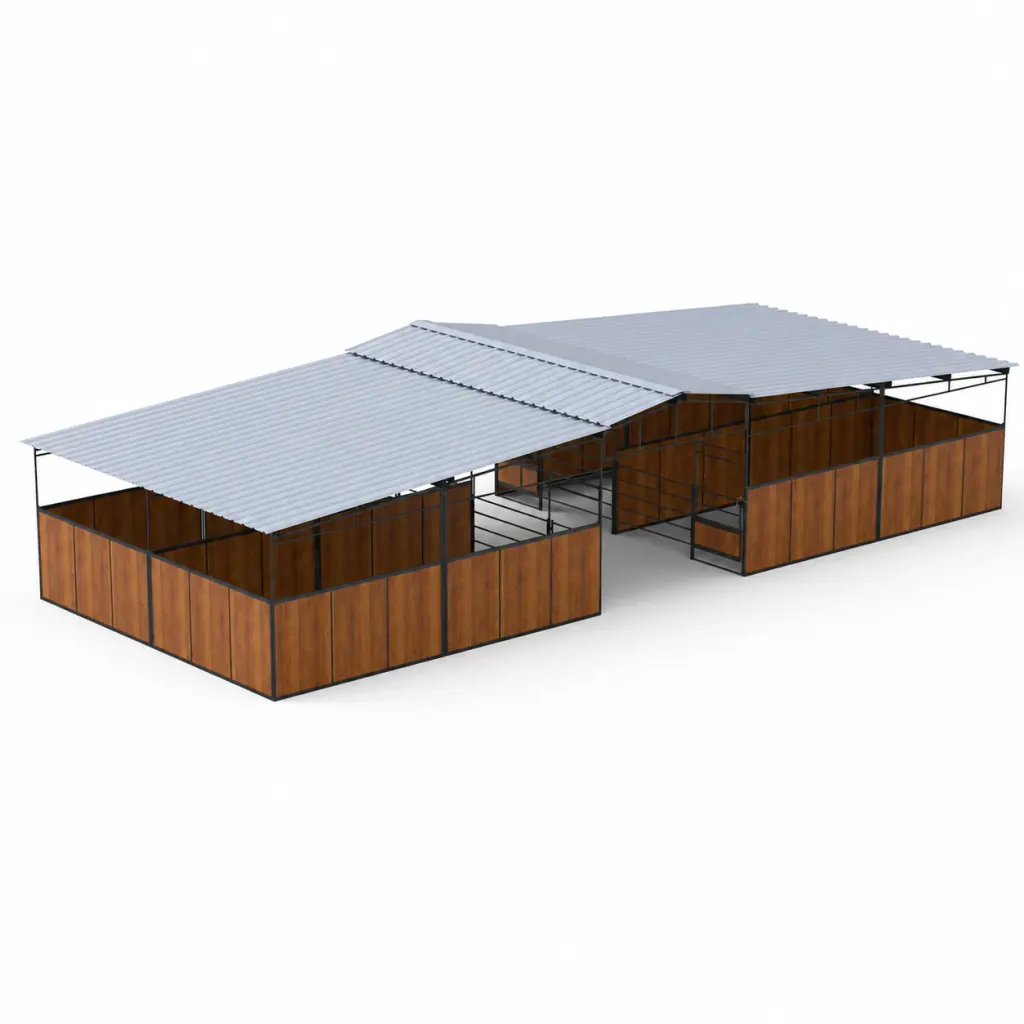

This 4-stall Heritage mare motel sets four fully roofed 12x24 ft stalls on a 12 ft breezeway, two a side, with welded steel C-channel in the panels to hold wood boards. The full roof suits horses that spend most of the day in their stalls.
We weld the Heritage panels and gate combos at our shop, finished in the dapple grey powder coat that's included. The kit adds the roof, the ground posts and the panel clamps and bolts; the boards are yours to supply.
- Put it up yourselfAssembly guide
- Or have it installedRequest an installation quote
Room and roof for four horses
The stalls and breezeway take about 60 x 24 ft. Penn State Extension sizes a box stall for a 1,000 lb horse at 12 x 12 ft, and each stall here gives 288 sq ft under cover, twice that. Both rows face the covered breezeway, and turnout goes in a separate paddock.
Your boards and your concrete
Ask us for the board size and count before you buy lumber, and we'll confirm it for your layout. Set the ground posts in concrete you supply, leaving the panel legs out of it. Nothing is welded on site, and installation is quoted separately.
A firm, level unloading spot
Ask us how long the longest pieces run, then pick a firm, level unloading spot that fits them. Leave the truck and trailer room to turn, and have a tractor with forks, a skid steer or helpers ready. Check the load and photograph any damage before the driver leaves.
The kit
- Stalls
- 4
- Individual stall size
- 12 x 24 ft
- Breezeway width
- 12 ft
- Layout
- Two facing rows
- Roof coverage
- Fully covered stalls and breezeway
- Panel height
- 5 ft
- Wood attachment
- Welded C-channel
- Finish
- Powder coat, dapple grey (included)
- Steel
- 14 gauge
- Breezeway roof
- Raised center roof
- Siding
- No PBR siding
- Breezeway
- 12 ft wide
- SKU
- BT-000757
Parts
12 ft Galvanized Z-Purlin, 6 in Profile
- Profile
- 6 in
- Length
- 12 ft
- Steel
- 14 gauge
- Material
- Galvanized steel
What’s included
Quantities for one kit.
Panels and gates
- 412 ft Heritage back panels
- 612 ft Heritage high-rise shade assemblies
- 412 ft Heritage gate combos
Roof
- 612 ft Heritage side assemblies
- 3212 ft Z-purlins
- 18PBR roof sheets over the stalls
- 186.5 ft PBR roof sheets
- 312 ft center breezeway trusses
- 310 ft ridge caps
Hardware
- 74Panel clamps and bolts
- Ground posts and roofing screws, included with the assemblies
Questions
How does it compare with the fully covered wood-insert kit?
Both are fully covered two-row kits that take your own boards. The wood-insert kit holds boards in 5-rail panels and is $15,869.23 in bare metal. The Heritage holds them in C-channel and is $15,706.80 with dapple grey included.
Can I get the Heritage with open runs or in one row?
Yes. The 4-stall Heritage with open runs roofs the breezeway and the front 12 ft of each stall, for $13,573.63. Pick Shed row under Layout for a single row of stalls; the total updates to match.
Can I get these powder coated horse stalls in another color?
Not as a Heritage. Dapple grey is included, and the Heritage buy box has no other finish. If you want boards in a black or custom-color frame, the wood-insert kits offer those under Finish.
Is it a wood horse barn?
Not entirely. It's a steel kit with a PBR metal roof, and the wood comes from the boards you supply for its welded C-channel.
Do I need a permit?
Check with your county. Our mare motel kits are not engineered and aren't built to a building code, so local rules decide.
Can I cancel or return it?
No. All sales are final and orders can't be cancelled once placed. Confirm your board plan, layout and site before you check out.
