1-Stall 24x24 Add-On, 5-Rail, Half Covered, Sloped Roof
$2,595.00each, plus shipping
- Estimated delivery in 1-2 weeks
- Made in the USA
Add to your order
Questions about fit or quantity? Call (619) 914-6657
A 24 ft by 24 ft add-on horse stall with five rails and a 12 ft by 24 ft sloped cover. It extends a compatible stall row by sharing a wall with the neighboring stall.
Extend the row with partial cover
The 12 ft by 24 ft cover roofs half of the nominal 24 ft by 24 ft stall area. Check which half will be covered when planning the stall entrance and the roof supports.
Confirm the existing stall dimensions, shared-wall connections and required components before adding this unit. An add-on has a different component arrangement from a standalone stall.
What’s included
Quantities are for one kit.
Panels and gates
- 412 ft corral panels
- 112 ft shelter panel
- 112 ft panel gate combo
Roof
- 325 ft Z-purlin trusses
- 912 ft PBR roof panels
Hardware
- 1Pack of self-tapping roofing screws with rubber washers
- 14Panel clamps with hardware
- 2Ground posts with hardware
Not included
- Concrete for the ground posts
- Installation, quoted separately
- Size
- 24 x 24 ft
- Rails
- 5 rail
- Steel
- 14 gauge
- Cover
- 24 x 12 ft sloped
- SKU
- BT-000093
Shipping cost
Freight is priced from the road miles to your address, as one load, with a $200 minimum. You see the amount before you pay. You can also arrange to pick the order up yourself at our shop in Brady, TX.
Delivery day
Someone must be on site during the carrier’s delivery window. Leave a firm surface and room for a trailer to turn around. The driver calls ahead when they can; a missed window can mean a redelivery charge.
Unloading
You unload. Have a tractor with forks, a skid steer, or enough people to hand-unload. The driver won’t take material off the trailer unless that was agreed in writing before the truck left.
When it arrives
Steel travels loose on the trailer, so scuffs and strap marks are common. Inspect the load, note any damage on the delivery receipt, photograph it at the truck and contact us the same day.
Also in horse stalls & stall kits

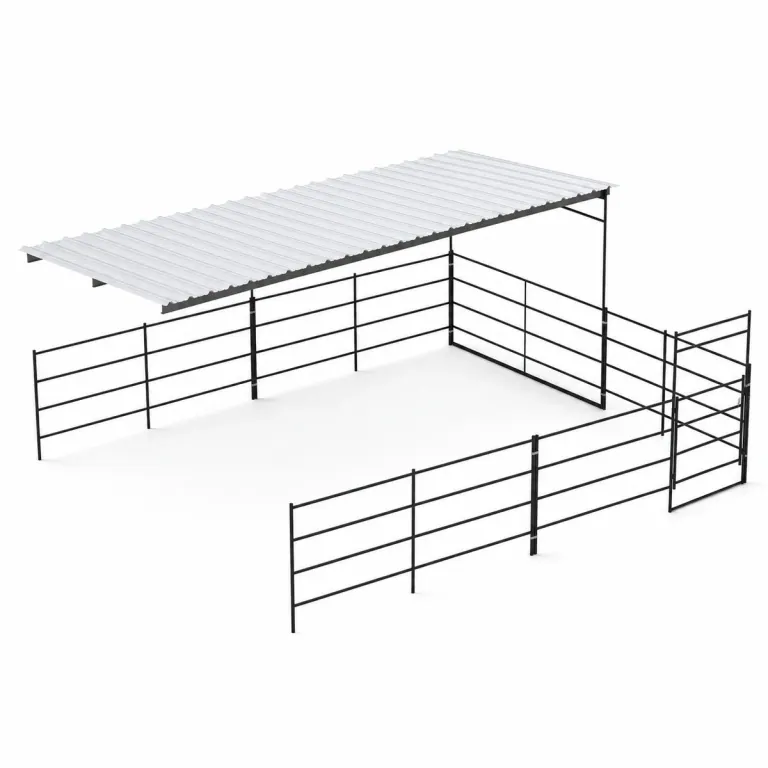

1-Stall 24x24 Add-On, 4-Rail, Half Covered, Sloped Roof
From $2,295.00
1-Stall 24x24 Add-On, 5-Rail, Uncovered
From $1,170.00

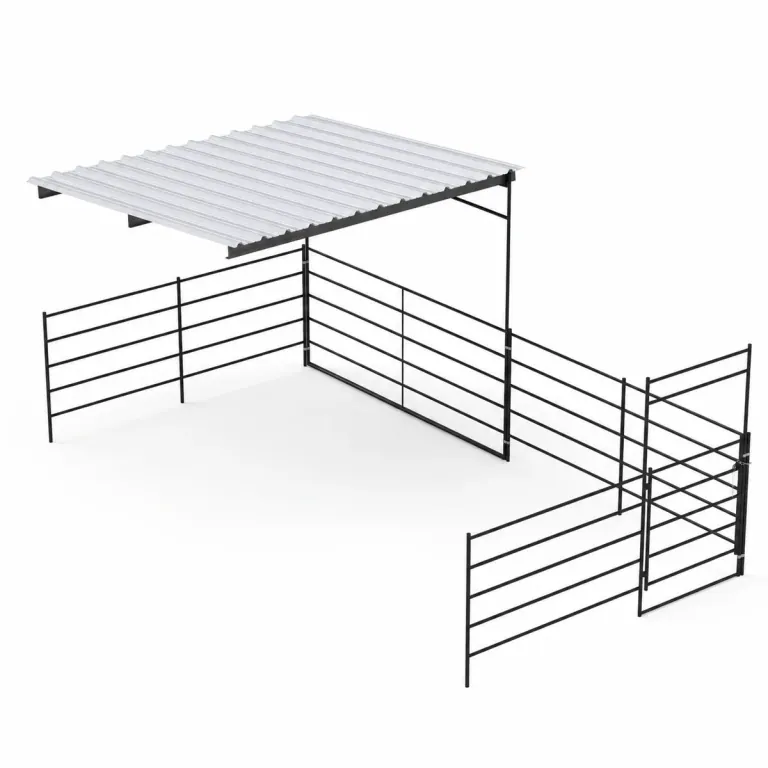

1-Stall 12x24 Add-On, 5-Rail, Half Covered, Sloped Roof
